16266001
BWK
BWK-16266001

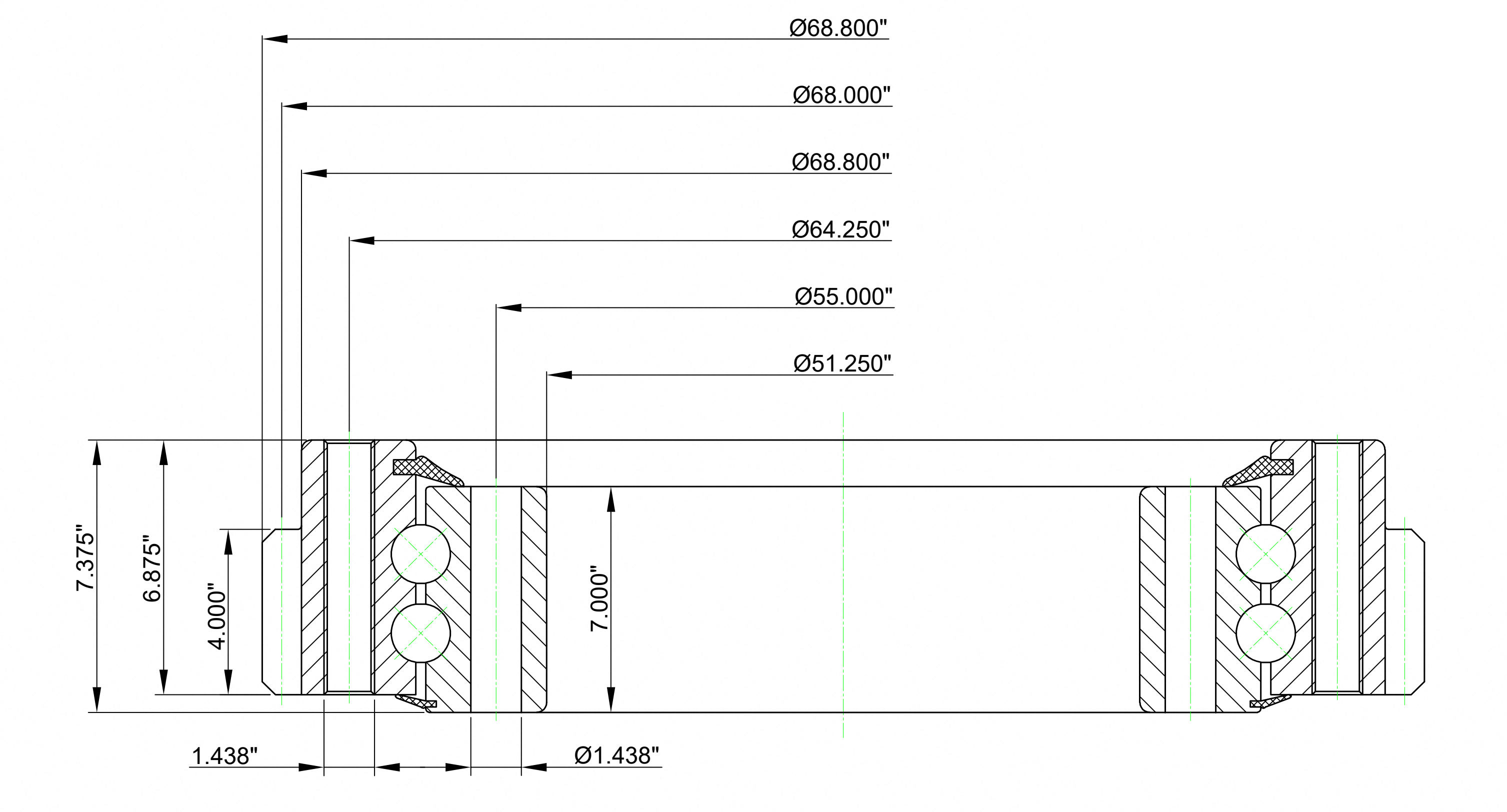

16266001 is a external gear double row ball slewing bearing with a 51.25 in inner-ring bore, 68.8 in outer-ring outside diameter and 7.375 in overall assembly height. Two rows of balls support combined loads and overturning moments. An external ring gear provides the drive interface for a mating pinion.
| Model | 16266001 |
| Product Type | External Gear Double Row Ball Slewing Bearing |
| Structure | Double row ball, eight-point contact, external gear |
| System of Measurement | Inch (dimensions shown) |
| Series | DT Series |
| Gear | External Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 51.25 in |
| Outside Diameter Of Outer Ring | 68.8 in |
| External Diameter On Outer Ring | 68.8 in |
| Height Of Overall Bearing Assembly | 7.375 in |
| Height Of Inner Ring | 7 in |
| Height Of Outer Ring | 7 in |
| Bolt Circle In Inner Ring | 55 in |
| Bolt Circle In Outer Ring | 64.25 in |
| Size Holes In Inner Ring | 1.438 in |
| Size Holes In Outer Ring | 1.438 in |
| Number Holes In Inner Ring | 42 |
| Number Holes In Outer Ring | 36 |
| Pitch Diameter Of Gear | 68 in |
| Diametral Pitch | 2 |
| Number Of Gear Teeth | 136 |
| Max Gear Tooth Load Fz | 36480 lbs |
| Moment Load Rating | 3470900 ft-lbf |
| Tooth | FD |
| Ring Material Options | 42CrMo or 50MN; confirm the supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 2850 lbs |
| Face Width Of Gear Teeth | 4 in |
Rotary platforms, lifting equipment and industrial handling machinery.
Check axial load, radial load and overturning moment together, including duty cycle and mounting stiffness. Match the bolt circles, hole sizes and ring heights to the mating structure. Confirm seal configuration, material grade and lubrication requirements before ordering. Verify tooth count, diametral pitch, gear face width and permissible tooth load against the mating pinion. Install on flat, adequately stiff mounting surfaces. Follow the specified bolt tightening procedure and lubrication schedule. Do not use the limiting moment rating alone as a complete application approval.
