16264001 External Gear Double Row Ball Slewing Bearing

16264001 is a external gear double row ball slewing bearing with a 38.504 in inner-ring bore, 50.016 in outer-ring outside diameter and 5.512 in overall assembly height. Two rows of balls support combined loads and overturning moments. An external ring gear provides the drive interface for a mating pinion.
Availability:
Quantity:
Inquire Add to Basket

  • 16264001

  • BWK

  • BWK-16264001

DESCRIPTION

Product Overview

16264001 is a external gear double row ball slewing bearing with a 38.504 in inner-ring bore, 50.016 in outer-ring outside diameter and 5.512 in overall assembly height. Two rows of balls support combined loads and overturning moments. An external ring gear provides the drive interface for a mating pinion.

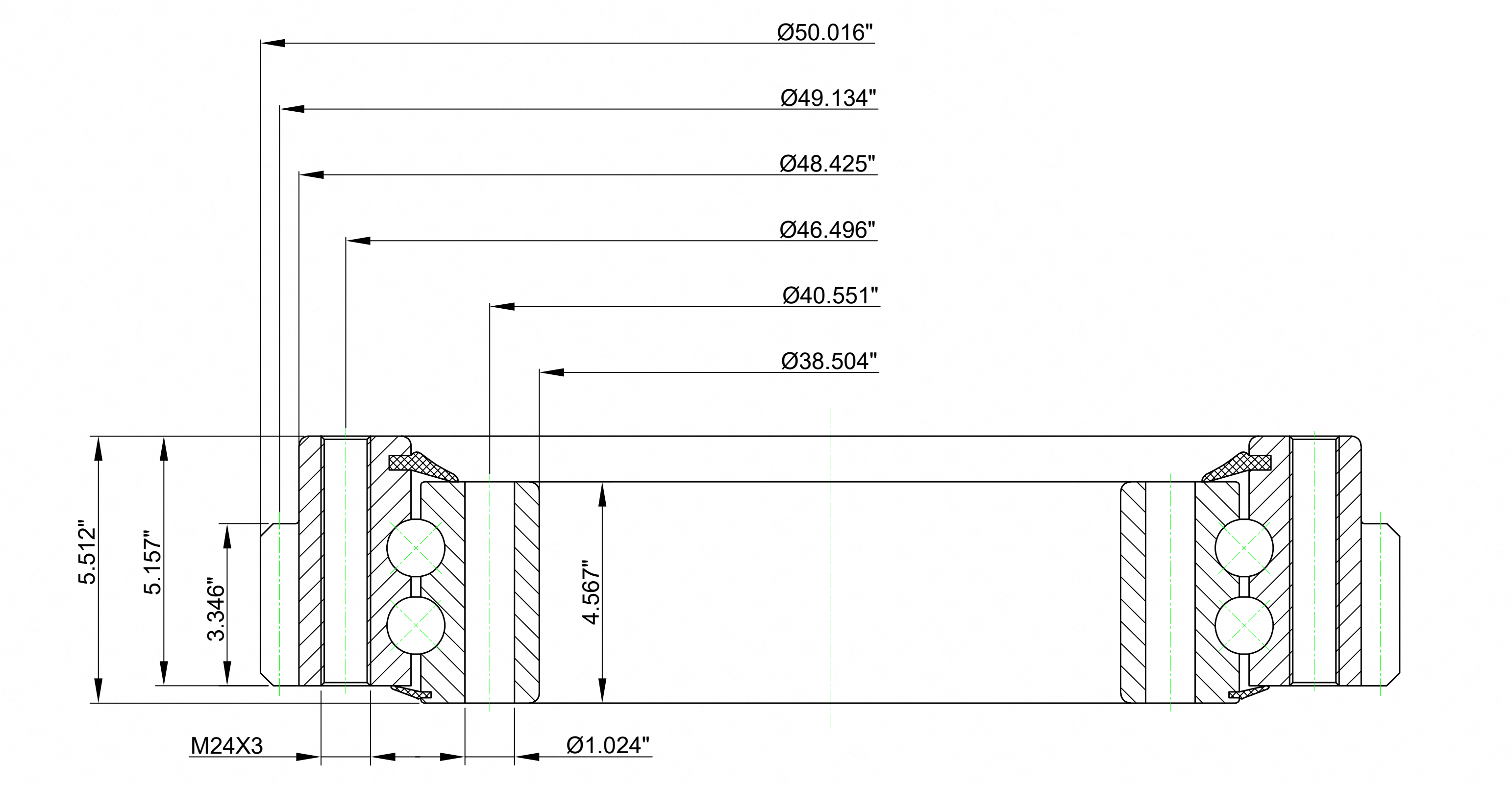

16264001

Technical Specifications

Model 16264001
Product Type External Gear Double Row Ball Slewing Bearing
Structure Double row ball, eight-point contact, external gear
System of Measurement Inch (dimensions shown)
Series DT Series
Gear External Gear
Type Ball
Bearing Type Standard
Inside Diameter Of Inner Ring 38.504 in
Outside Diameter Of Outer Ring 50.016 in
External Diameter On Outer Ring 48.425 in
Height Of Overall Bearing Assembly 5.512 in
Height Of Inner Ring 4.567 in
Height Of Outer Ring 4.567 in
Bolt Circle In Inner Ring 40.551 in
Bolt Circle In Outer Ring 46.496 in
Size Holes In Inner Ring 1.024 in
Size Holes In Outer Ring M24x3
Number Holes In Inner Ring 48
Number Holes In Outer Ring 42
Pitch Diameter Of Gear 49.134 in
Module 8
Number Of Gear Teeth 156
Max Gear Tooth Load Fz 19390 lbs
Moment Load Rating 970400 ft-lbf
Tooth FD
Ring Material Options 42CrMo or 50MN; confirm the supplied grade when ordering
Ball Material Chrome Steel
Cage Material Nylon or 300 Series Stainless Steel
Seal Material NBR
RoHS Compliant
Weight 870 lbs
Face Width Of Gear Teeth 3.346 in
Addendum Modification Coefficient Of Gear Teeth 0.5

Applications

Rotary platforms, lifting equipment and industrial handling machinery.

Selection and Installation

Check axial load, radial load and overturning moment together, including duty cycle and mounting stiffness. Match the bolt circles, hole sizes and ring heights to the mating structure. Confirm seal configuration, material grade and lubrication requirements before ordering. Verify tooth count, diametral pitch, gear face width and permissible tooth load against the mating pinion. Install on flat, adequately stiff mounting surfaces. Follow the specified bolt tightening procedure and lubrication schedule. Do not use the limiting moment rating alone as a complete application approval.
