VSA200544-N
BWK
BWK-VSA200544-N

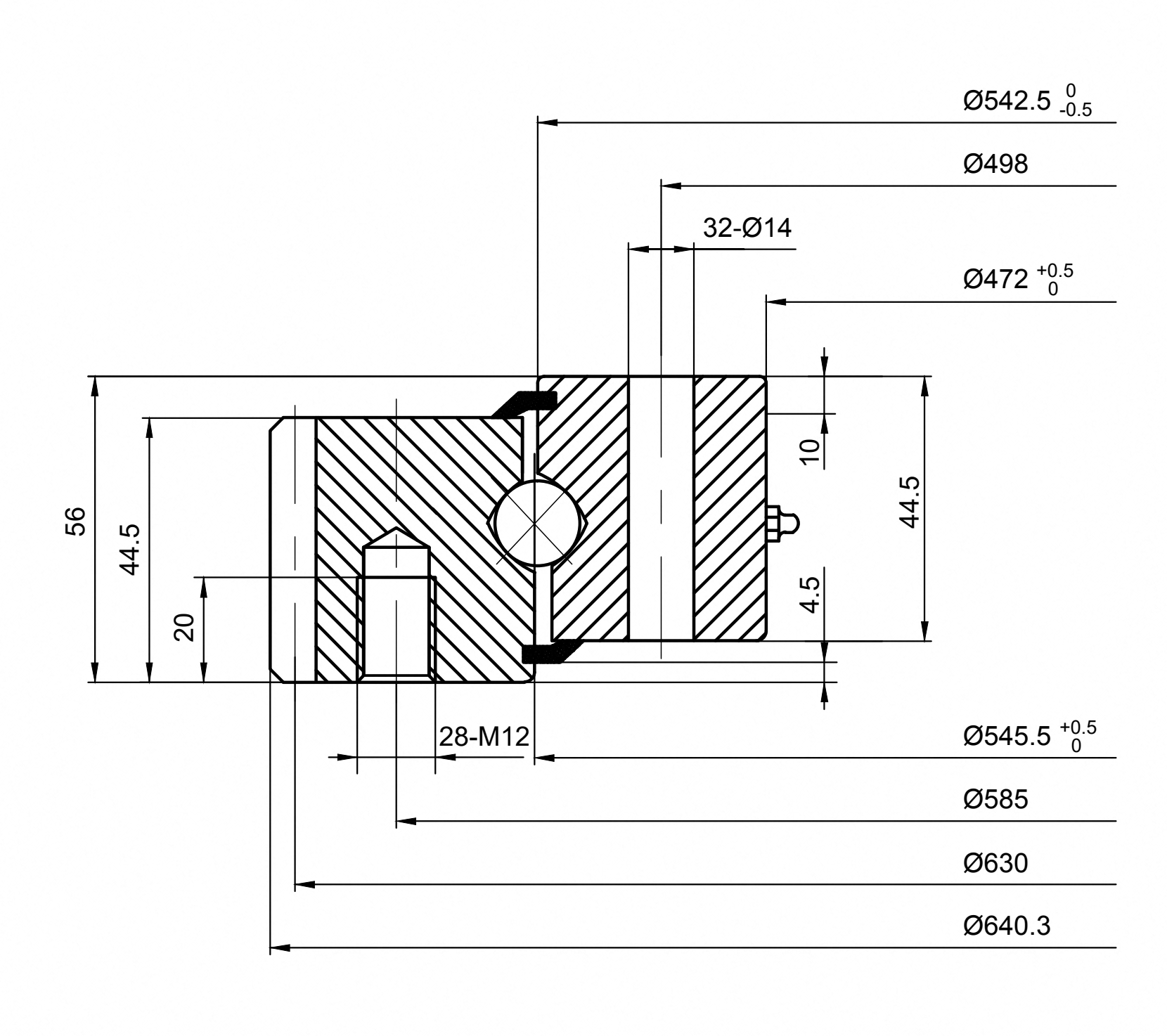

VSA200544-N is a external gear four point contact slewing bearing with a 18.583 in bore, 25.209 in outside diameter and 2.205 in overall assembly height. An external gear provides the mating-pinion interface. The raceway supports combined radial, axial and moment loading.
| Model | VSA200544-N |
| Product Type | External Gear Four Point Contact Slewing Bearing |
| Structure | Single row ball, four-point contact, external gear |
| Dimension Units | Inch (dimensions shown) |
| Series | VS Series |
| Gear | External Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 18.583 in |
| Outside Diameter Of Outer Ring | 25.209 in |
| Height Of Overall Bearing Assembly | 2.205 in |
| External Diameter On Inner Ring | 21.358 in |
| Height Of Inner Ring | 1.752 in |
| Height Of Outer Ring | 1.752 in |
| Bolt Circle In Inner Ring | 19.606 in |
| Inside Diameter Of Inner Ring Tolerance | 0 in to 0.02 in |
| Bolt Circle In Outer Ring | 23.031 in |
| Size Holes In Inner Ring | 0.551 in |
| Size Holes In Outer Ring | M12 |
| Number Holes In Inner Ring | 32 |
| Number Holes In Outer Ring | 28 |
| Diametral Pitch | 6 |
| Pitch Diameter Of Gear | 24.803 in |
| Permissible Tooth Forces T | 4792.5 lbs |
| Basic Dynamic Load Rating(Ca) | 34200 lbf |
| Number Of Gear Teeth | 105 |
| Basic Dynamic Load Rating(Cr) | 31050 lbf |
| Basic Static Load Rating(C0r) | 90000 lbf |
| Max Gear Tooth Load Fz | 7087.5 lbs |
| Basic Static Load Rating(C0a) | 195750 lbf |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 43.215 kg |
Driven rotary tables, industrial handling systems and positioning equipment.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure. Check the gear pitch, tooth count, face width and permissible tooth load against the mating pinion.
