VLU200744
BWK
BWK-VLU200744

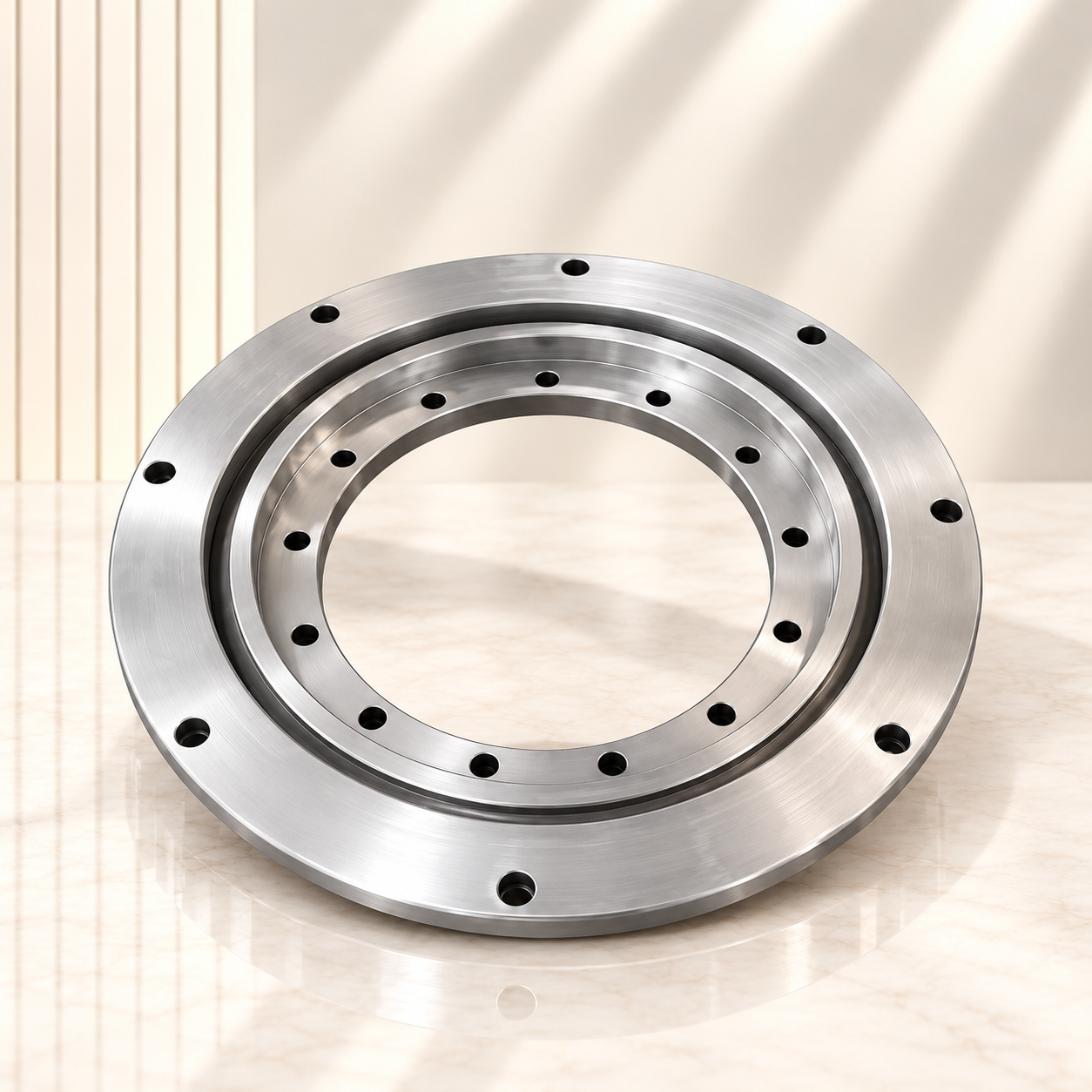

VLU200744 is a gearless flanged slewing bearing with a 24.961 in bore, 33.386 in outside diameter and 2.205 in overall assembly height. The flanged, gearless construction provides bolted mounting without an integral drive gear. The support structure and drive are selected as part of the machine design.

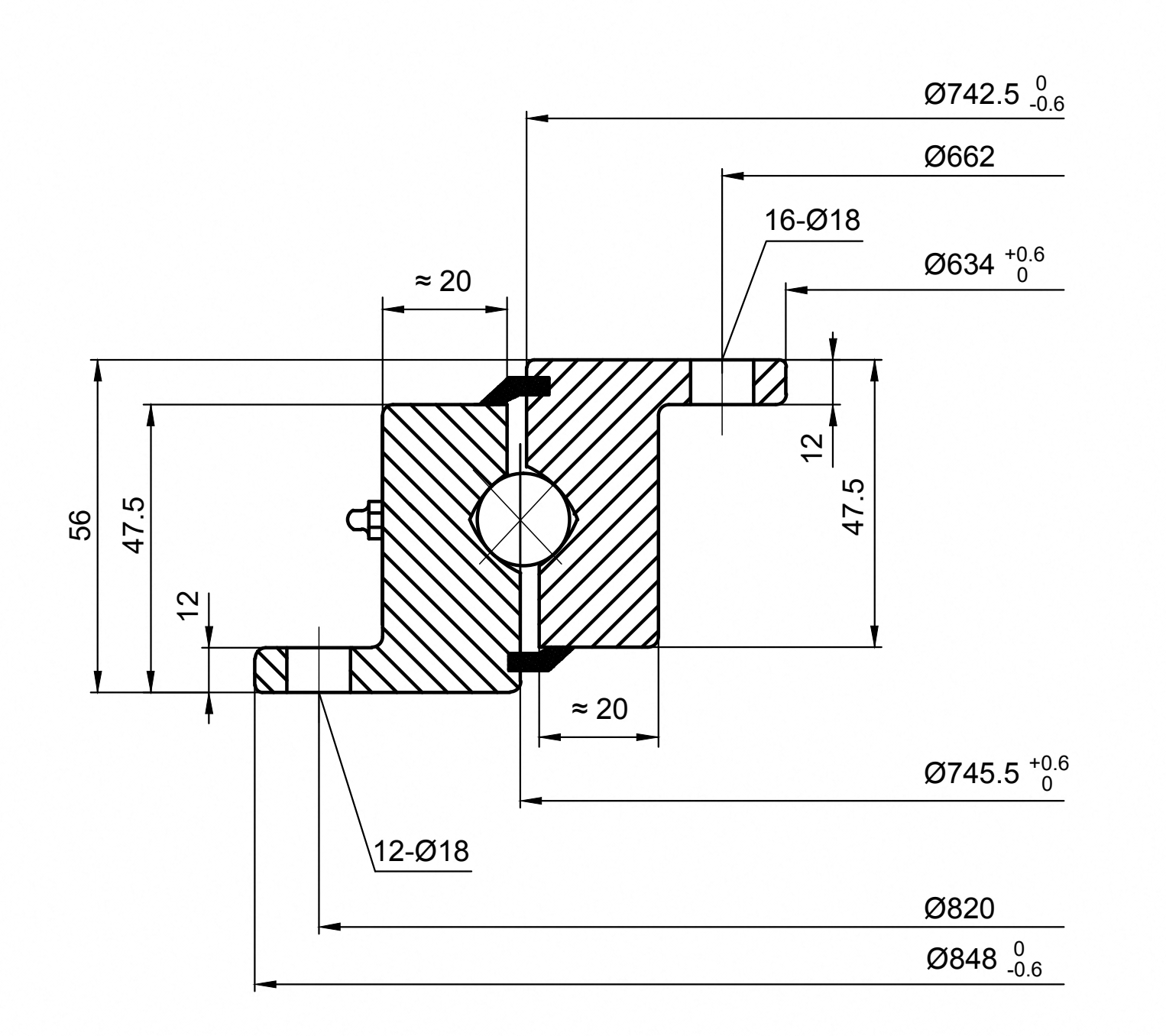

| Model | VLU200744 |
| Product Type | Gearless Flanged Slewing Bearing |
| Structure | Single row ball, flanged rings, without gear |
| Dimension Units | Inch (dimensions shown) |
| Series | VL Series |
| Gear | Without Gear |
| Type | Ball |
| Bearing Type | Flanged |
| Inside Diameter Of Inner Ring | 24.961 in |
| Outside Diameter Of Outer Ring | 33.386 in |
| Height Of Overall Bearing Assembly | 2.205 in |
| External Diameter On Inner Ring | 29.232 in |
| Height Of Inner Ring | 1.752 in |
| Height Of Outer Ring | 1.752 in |
| Bolt Circle In Inner Ring | 26.063 in |
| Inside Diameter Of Inner Ring Tolerance | 0 in to 0.024 in |
| Bolt Circle In Outer Ring | 32.283 in |
| External Diameter On Outer Ring Tolerance | -0.024 in to 0 in |
| Size Holes In Inner Ring | 0.709 in |
| Size Holes In Outer Ring | 0.709 in |
| Number Holes In Inner Ring | 16 |
| Number Holes In Outer Ring | 12 |
| Basic Dynamic Load Rating(Ca) | 38475 lbf |
| Basic Dynamic Load Rating(Cr) | 34875 lbf |
| Basic Static Load Rating(C0r) | 44325 lbf |
| Basic Static Load Rating(C0a) | 119250 lbf |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 41.8 kg |
Light rotary platforms, positioning equipment and material-handling assemblies.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure.
