VLA200744-N
BWK
BWK-VLA200744-N

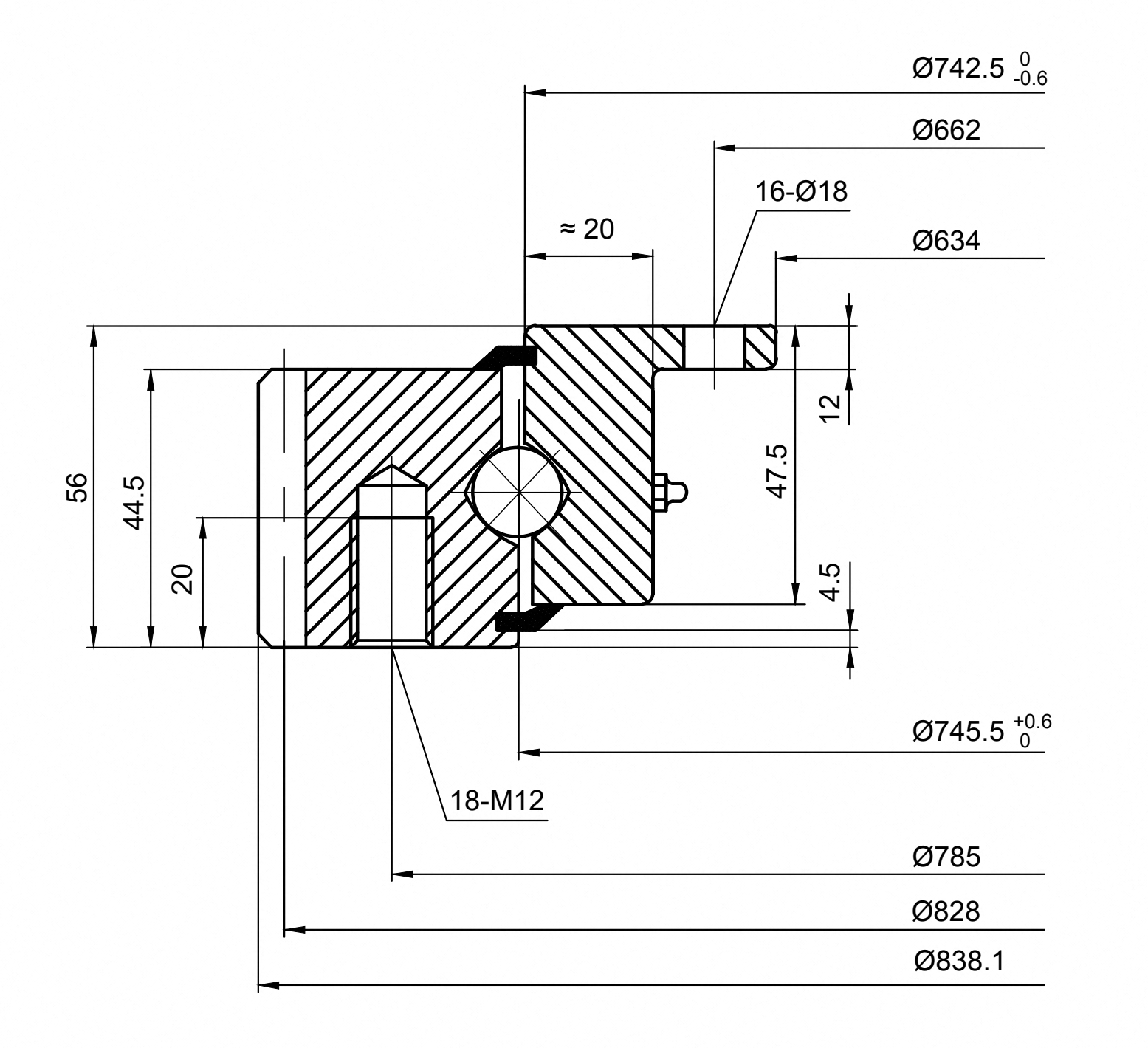

VLA200744-N is a external gear flanged slewing bearing with a 24.961 in bore, 32.996 in outside diameter and 2.205 in overall assembly height. Flanged rings provide the mounting interface, while the external gear permits pinion drive. Check support stiffness and gear engagement together.
| Model | VLA200744-N |
| Product Type | External Gear Flanged Slewing Bearing |
| Structure | Single row ball, flanged rings, external gear |
| Dimension Units | Inch (dimensions shown) |
| Series | VL Series |
| Gear | External Gear |
| Type | Ball |
| Bearing Type | Flanged |
| Inside Diameter Of Inner Ring | 24.961 in |
| Outside Diameter Of Outer Ring | 32.996 in |
| Height Of Overall Bearing Assembly | 2.205 in |
| External Diameter On Inner Ring | 29.232 in |
| Height Of Inner Ring | 1.752 in |
| Height Of Outer Ring | 1.752 in |
| Bolt Circle In Inner Ring | 26.063 in |
| Inside Diameter Of Inner Ring Tolerance | 0 in to 0.024 in |
| Bolt Circle In Outer Ring | 30.906 in |
| Size Holes In Inner Ring | 0.709 in |
| Size Holes In Outer Ring | M12 |
| Number Holes In Inner Ring | 16 |
| Number Holes In Outer Ring | 18 |
| Diametral Pitch | 6 |
| Pitch Diameter Of Gear | 32.598 in |
| Permissible Tooth Forces T | 4792.5 lbs |
| Basic Dynamic Load Rating(Ca) | 38475 lbf |
| Number Of Gear Teeth | 138 |
| Basic Dynamic Load Rating(Cr) | 34875 lbf |
| Basic Static Load Rating(C0r) | 44325 lbf |
| Max Gear Tooth Load Fz | 7087.5 lbs |
| Basic Static Load Rating(C0a) | 119250 lbf |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 54.5 kg |
Rotary handling systems, compact lifting equipment and driven platforms.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure. Check the gear pitch, tooth count, face width and permissible tooth load against the mating pinion.
