Self-aligning ball bearings use two rows of balls and a common spherical outer-ring raceway to accommodate angular misalignment while maintaining smooth rotation.
BWK supplies open, sealed and tapered-bore designs for fans, conveyors, textile machinery and transmission equipment where shaft deflection or mounting deviation may occur.
Key Advantages
1. Automatic Misalignment Compensation
The spherical outer raceway helps accommodate shaft deflection and housing alignment errors.
2. Low-Friction Double-Row Design
Two rows of precision balls support stable radial operation at practical industrial speeds.
3. Reliable Mixed-Load Performance
Suitable for radial loads with limited axial load in either direction.
4. Multiple Bore and Seal Options
Available with cylindrical or tapered bores, open construction or contact seals.
Available Series
| Series | Typical Design | Main Use |
| 1200 Series | Light series, open | Compact general machinery |
| 1300 Series | Medium series, open | Higher radial capacity |
| 2200 Series | Wide series, open or sealed | Industrial transmission systems |
| 2300 Series | Heavy wide series | More demanding radial loads |
Available Models
| Model | Bore Diameter | Outside Diameter | Width | Typical Cage |
| 2305 | 25 mm | 62 mm | 24 mm | Steel / Polyamide |
| 2306 | 30 mm | 72 mm | 27 mm | Steel / Polyamide |
| 2307 | 35 mm | 80 mm | 31 mm | Steel / Polyamide |
| 2308 | 40 mm | 90 mm | 33 mm | Steel / Polyamide |
| 2309 | 45 mm | 100 mm | 36 mm | Steel / Polyamide |

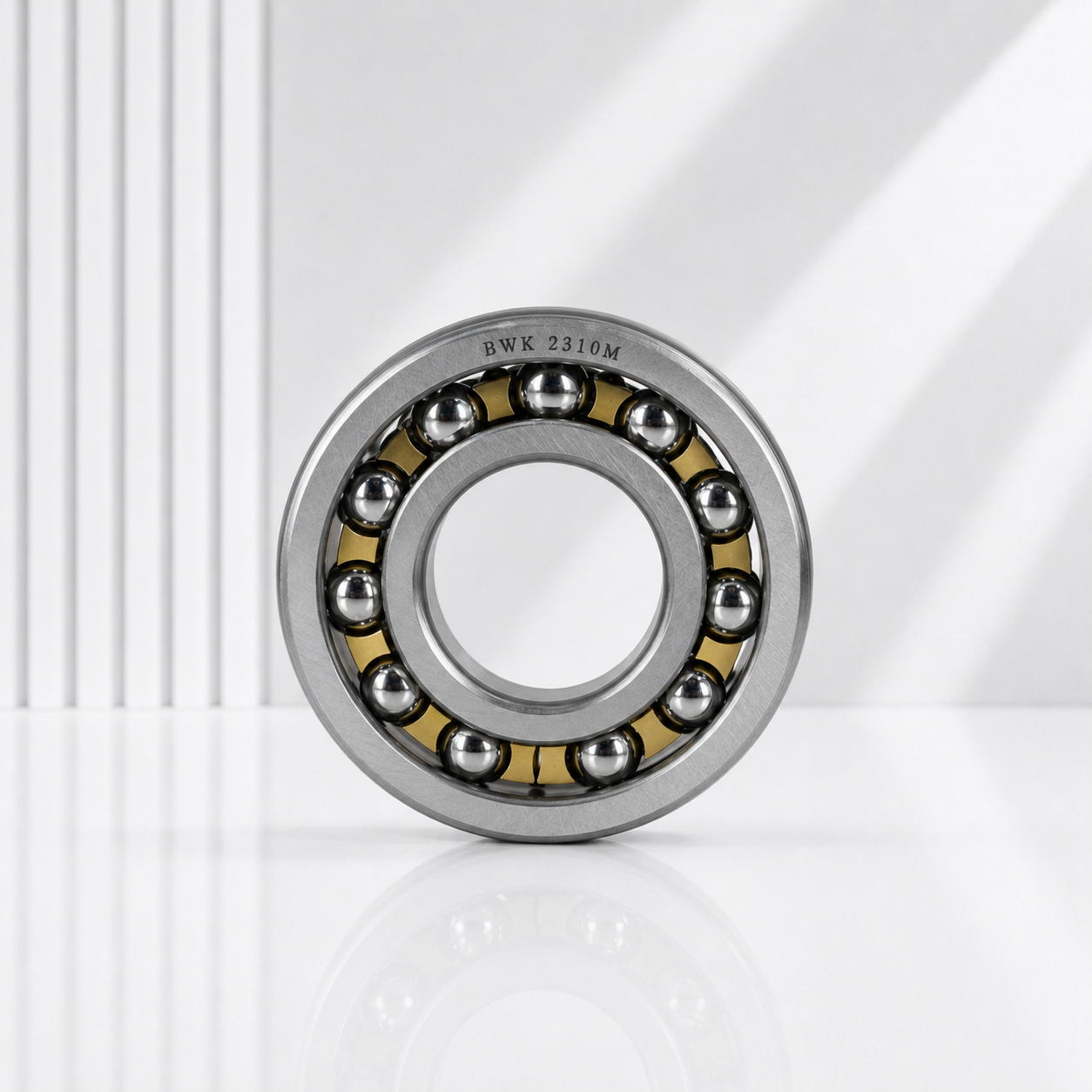

| 2310M | 50 mm | 110 mm | 40 mm | Machined Brass |
| 2311 | 55 mm | 120 mm | 43 mm | Steel / Brass Option |
| 2312 | 60 mm | 130 mm | 46 mm | Steel / Brass Option |
Available Options
Cylindrical or tapered bore
Open or sealed designs subject to series
C3 radial internal clearance
Steel, brass or polyamide cage options subject to model
Applications
Industrial fans and blowers
Conveyors and material handling systems
Textile and agricultural machinery
Woodworking equipment
Transmission shafts and general industrial equipment
Packaging & Delivery
Protective Packaging
Each bearing is protected against moisture, corrosion and transport damage.

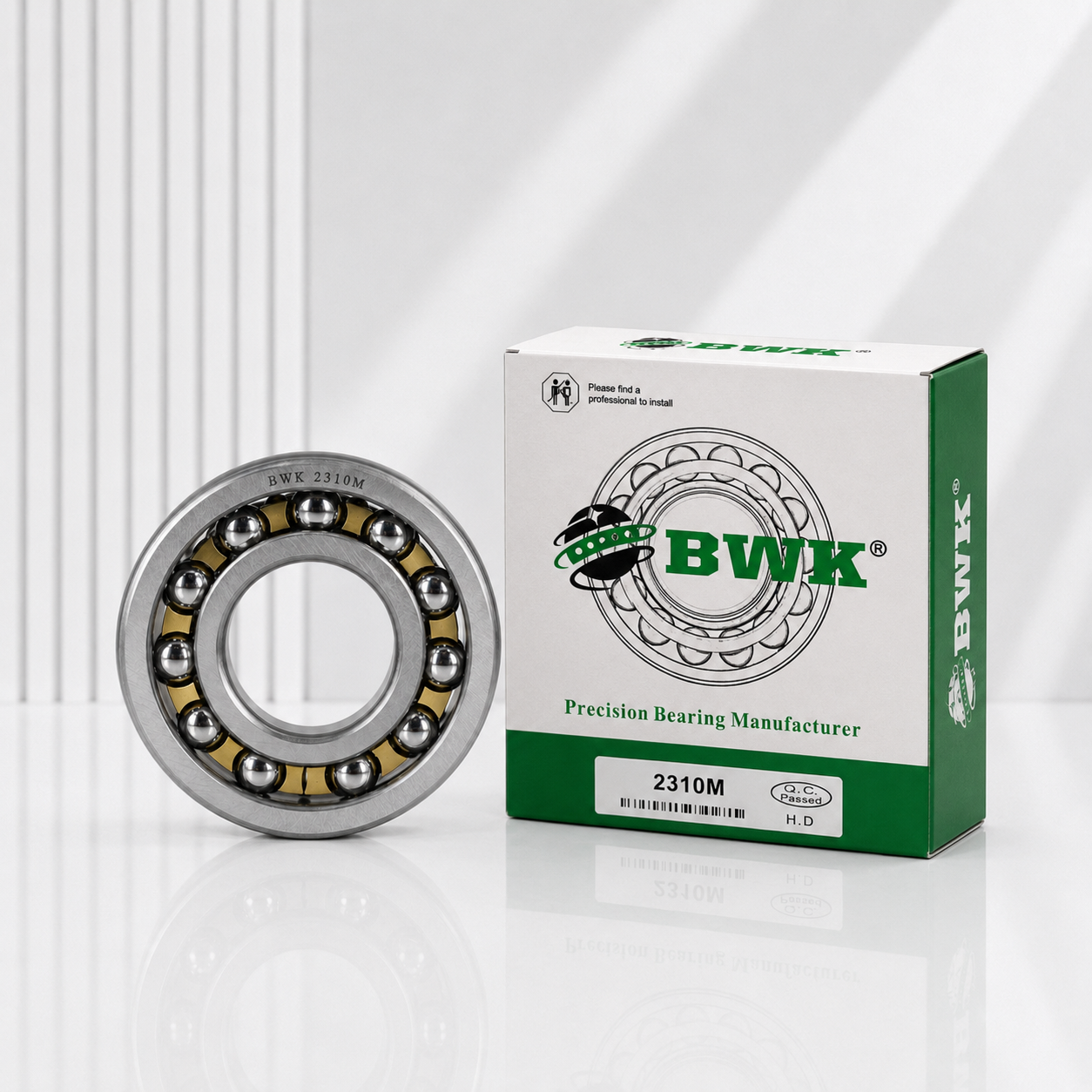

BWK Branded Packaging
Individual BWK boxes, model labels and reinforced export cartons are available.
Flexible Order Support
Contact BWK for model selection, clearance, bore and sealing requirements.
