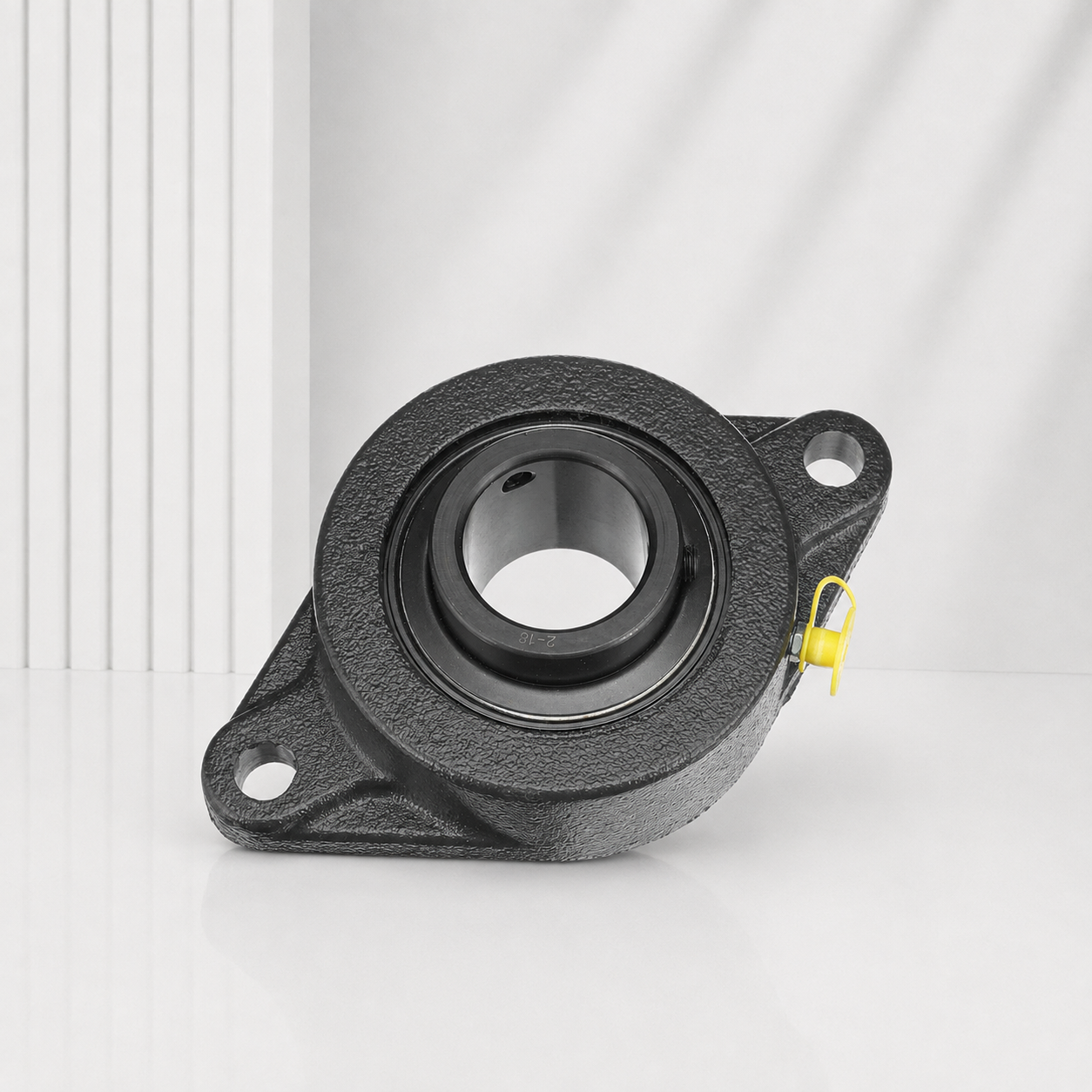

SFT-24 Two-Bolt Flange Ball Bearing

SFT-24 mounted ball bearing unit with a 1-1/2 in bore, cast-iron two-bolt flange housing and setscrew locking for reliable industrial shaft support.
Availability:
Quantity:
Inquire Add to Basket

  • SFT-24

  • BWK

  • BWK-SFT-24

DESCRIPTION

Product Overview

SFT-24 mounted ball bearing unit with a 1-1/2 in bore, cast-iron two-bolt flange housing and setscrew locking for reliable industrial shaft support.


Technical Data

Reference modelSFT-24
Bore diameter1-1/2 in
Housing styleTwo-bolt flange
Housing materialCast iron
Insert bearing material52100 bearing steel
Locking methodSetscrew lock
Mounting arrangement2
Reference part number700552

Key Features

  • Durable cast-iron mounted housing

  • 52100 bearing-steel insert

  • Secure setscrew shaft locking

  • Black-oxided inner ring

  • Suitable for common industrial mounting arrangements

Applications

  • Conveyor systems

  • Material-handling equipment

  • Packaging machinery

  • Fans and blowers

  • General industrial equipment

Selection Notes

Confirm bore size, shaft fit, mounting geometry, load, speed, temperature and lubrication requirements before ordering. Verify final dimensions against the application drawing.
