Rolling mills operate under some of the most demanding conditions found in industrial machinery. Bearings installed in rolling equipment must carry heavy radial loads, axial loads and impact loads while maintaining stable running accuracy. At the same time, they are exposed to cooling water, scale, high temperatures, vibration and contamination.
For this reason, rolling mill bearings are not selected only by size. The bearing structure, roll position, load direction, speed, lubrication, sealing and required accuracy all influence the final choice.
Rolling mill bearings are mainly installed at the roll necks and supporting positions of rolling equipment. Their function is to support the rolls, transmit rolling loads and maintain accurate roll positioning during production.

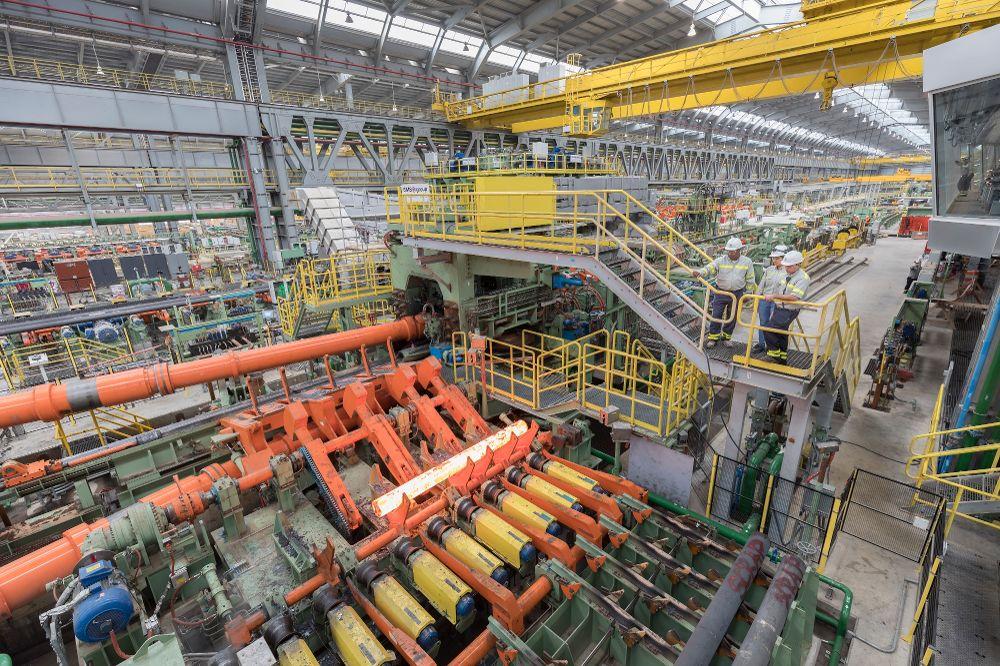

They are widely used in hot strip mills, cold rolling mills, plate mills, bar and wire mills, temper mills, skin-pass mills and other metallurgical rolling equipment.
Compared with general industrial bearings, rolling mill bearings usually work under much higher loads and more severe environmental conditions. Stable performance directly affects rolling accuracy, maintenance intervals and production continuity.
Four-row cylindrical roller bearings are one of the most important bearing types used in rolling mills. Their multi-row roller structure provides very high radial load capacity while keeping the bearing cross-section relatively compact.
They are commonly used on backup rolls, where extremely high radial rolling forces must be supported. Because cylindrical roller bearings mainly carry radial loads, they are often combined with another bearing arrangement to control axial displacement.
Typical applications include backup rolls in hot strip mills, cold rolling mills, plate mills and heavy-duty rolling stands.
Four-row tapered roller bearings can support both heavy radial loads and axial loads. This makes them especially suitable for work-roll and intermediate-roll positions where combined loading is common.
In many rolling mills, these bearings provide both load-carrying capacity and roll guidance. Open and sealed designs are available depending on lubrication and contamination conditions.
Double-row tapered roller bearings are often used as axial locating bearings together with four-row cylindrical roller bearings.
In this arrangement, the cylindrical roller bearing carries most of the radial rolling force, while the tapered roller bearing controls axial movement. Separating radial and axial functions can provide a stable bearing arrangement for heavy backup rolls.
Spherical roller bearings are suitable for heavy loads, shaft deflection and misalignment. They may be used in auxiliary rolling equipment and in positions where alignment conditions are more difficult.
The self-aligning structure helps compensate for small installation errors and housing or shaft deflection.
Sendzimir and cluster rolling mills use special bearing arrangements. Some back-up roll bearings have very thick outer rings, and the outer ring itself may function as part of the rolling surface.
These bearings require high ring strength, high running accuracy and reliable lubrication because they operate under heavy loads in compact mill structures.
The operating conditions of work rolls and backup rolls are different, so their bearing requirements are also different.
Work rolls directly contact the material being rolled. Their bearings may operate at relatively high speed while carrying both radial and axial loads. They are also exposed to large amounts of cooling water and mill scale.
Four-row tapered roller bearings are commonly used in these positions because they can accommodate combined loading and provide good roll guidance.
Backup rolls support the work rolls and resist roll deformation. Their bearings normally operate at lower speed but must carry extremely high radial loads and shock loads.
Four-row cylindrical roller bearings are therefore widely used for backup-roll applications because of their high radial load capacity and rigidity.
Rolling mill bearing life is strongly affected by the operating environment. Several factors can lead to premature failure.
Cooling water can enter the bearing during rolling. Water reduces lubrication performance, increases corrosion risk and can damage the oil film between rollers and raceways.
Oxide scale, metal particles and other contaminants can enter the bearing and create surface indentations, wear and fatigue damage.
Heavy rolling loads require a stable lubricant film. If lubrication is insufficient, direct metal contact may occur, causing wear, overheating, smearing or flaking.
Rolling load is not always constant. Sudden impact, uneven material entry or abnormal rolling conditions can create high local stress on rollers and raceways.
Excessive or insufficient clearance can influence load distribution, operating temperature, vibration and service life. Large multi-row roller bearings often require careful clearance selection.
Incorrect ring orientation, uneven tightening, contamination during installation or improper handling can shorten bearing life before the mill even returns to normal operation.
Water resistance is particularly important for rolling mill bearings. Work-roll areas are frequently exposed to cooling water, and negative pressure around seals can draw water and scale into the bearing.
Sealed four-row tapered roller bearings can reduce contamination and help retain grease. In severe applications, seal design and water-resistant grease can significantly influence maintenance intervals.
When selecting a rolling mill bearing, the following factors should be evaluated together.
Determine both radial and axial loads. Backup-roll bearings usually require extremely high radial load capacity, while work-roll bearings often need to handle combined loads.
Work rolls may rotate considerably faster than backup rolls. Bearing type, cage design, lubrication and internal clearance must match the operating speed.
Confirm whether the bearing is used for a work roll, intermediate roll, backup roll, Sendzimir backup roll or another part of the rolling line.
Grease, circulating oil, oil mist and oil-air lubrication may be used depending on the mill design. Lubricant selection should consider load, temperature, speed and contamination.
The amount of cooling water, scale and metal particles should be considered when selecting seals, grease and bearing materials.
Running accuracy influences roll positioning and therefore the dimensional consistency and surface quality of rolled products.
Correct radial internal clearance is particularly important for large multi-row bearings. The installed clearance should consider fit, temperature and operating load.
Replacement projects often begin with an existing bearing number from another manufacturer. However, bearing designations are not always identical across brands.
For a reliable cross reference, it is better to compare the complete bearing specification rather than only the model number.
Important information includes the original brand and model, bore diameter, outside diameter, width, bearing structure, number of roller rows, clearance, precision, seal arrangement and roll position.
Two bearings with similar model numbers or identical boundary dimensions should not automatically be considered interchangeable. Differences in internal geometry, roller design, cage, clearance and material can affect performance under rolling loads.
BWK supplies bearing solutions for metallurgical and heavy industrial equipment, including bearings for rolling applications.
Available product types can include four-row cylindrical roller bearings, four-row tapered roller bearings, double-row tapered roller bearings, spherical roller bearings and other large-size roller bearings used in work-roll and backup-roll positions.
For replacement projects, customers can provide the existing bearing model, brand, dimensions, photos or drawings. BWK can compare the bearing structure and key dimensions to assist with selecting a suitable solution.
Rolling mill bearings are not simply large bearings. Correct bearing selection helps improve rolling stability, reduce unplanned downtime and support reliable production.
