QJ 203 N2MA
BWK
BWK-QJ-203-N2MA

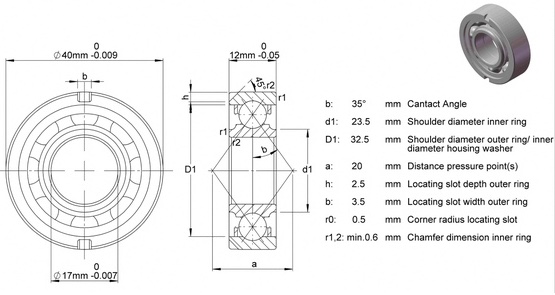

QJ 203 N2MA four point contact ball bearing, 17 mm bore x 40 mm outside diameter x 12 mm width. Designed for precise, reliable operation in industrial machinery.
| Model | QJ 203 N2MA |
|---|---|
| Bore diameter | 17 mm |
| Outside diameter | 40 mm |
| Width | 12 mm |
| Bearing type | Four point contact ball bearing |
| Design | Four-point contact open design with locating slots and P6 precision |
| Cage | Brass |
| Seal type | Open |
| Dynamic radial load | 17.01 kN |
| Static radial load | 11.41 kN |
| Maximum speed | 30,000 rpm |
Carries axial load in both directions
Can support combined radial and axial loads
Brass cage for strength and dimensional stability
N2 locating slots help prevent outer-ring rotation
Industrial gearboxes
Rotary tables
Compressors
Heavy-duty machinery
Confirm shaft and housing fits, load direction, speed, lubrication, operating temperature and required precision before ordering.
