Needle Roller Bearings in Tight Spaces: What Buyers Should Confirm Before Ordering

“We need the same size, but the last batch ran hot.” “The bearing fits, but the service life is shorter than expected.” “Can you quote this model from the dimensions?” These are common questions in needle roller bearing inquiries, and they usually point to the same issue: matching the outside dimensions is only the first step.

Needle roller bearings are often chosen because they can carry substantial radial load in a very small cross-section. That advantage is useful in gearboxes, reducers, agricultural equipment, power tools and compact transmission systems. But the smaller the installation space, the more the surrounding shaft, housing and lubrication conditions matter.

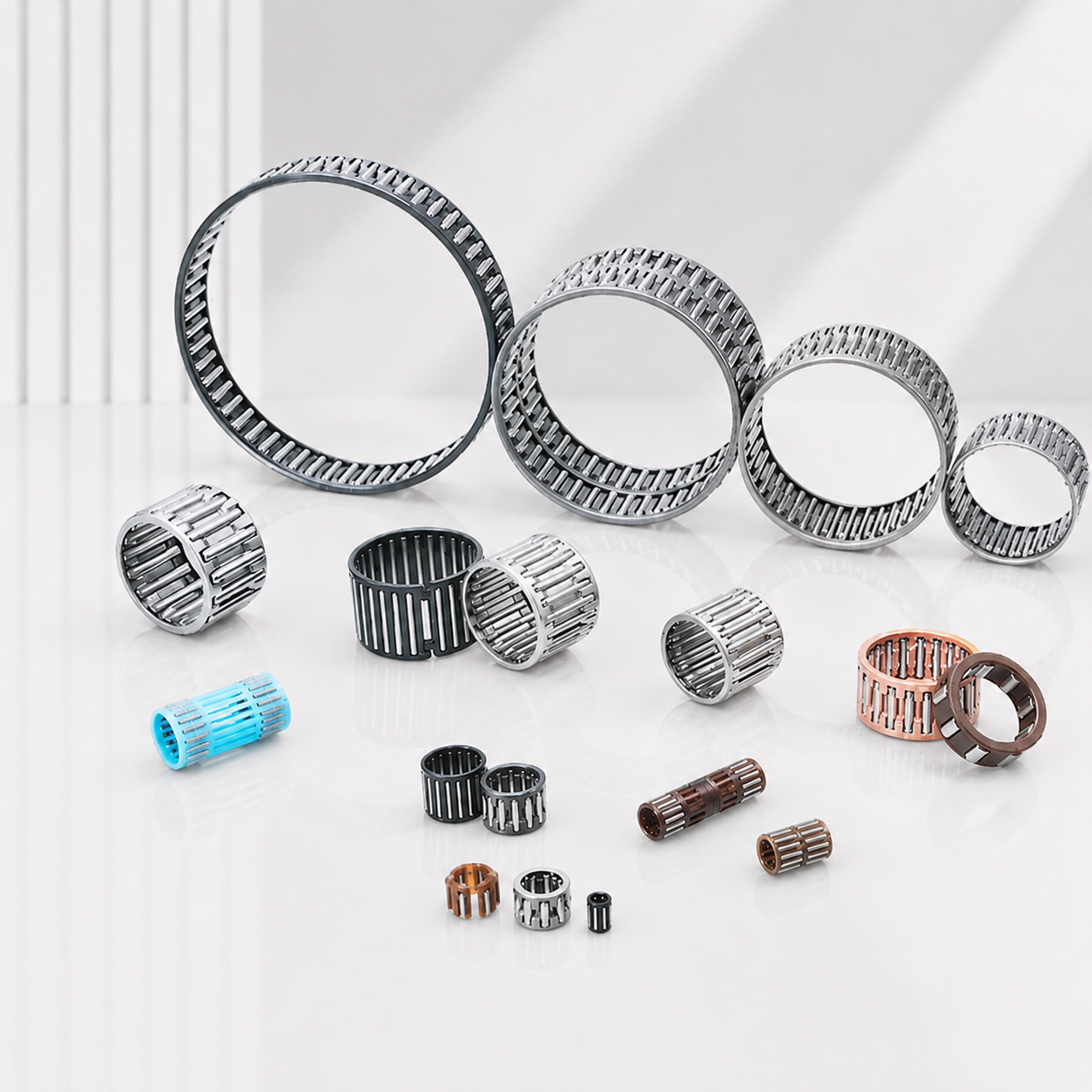

For radial needle roller and cage assemblies, the shaft and housing may work directly as raceway surfaces. That means surface hardness, finish, roundness and dimensional accuracy are part of the bearing system. If a replacement is selected only by Fw, Ew and width, an apparently correct part can still develop noise, heat or early wear after installation.

Another frequent purchasing problem is incomplete model information. A K-series designation, an old code and a customer drawing may describe the same basic arrangement in different ways. Before quoting, it is worth confirming the full designation, shaft diameter, installation dimensions, load direction, speed, lubrication and whether the shaft or housing is used as the raceway.

Buyers also ask whether a needle roller bearing can simply replace a ball bearing to save space. Sometimes it can, but the load direction and raceway design must be checked first. Needle rollers are especially effective for radial load in limited radial space; they are not a universal substitute for every bearing arrangement.

For BWK inquiries, send the model or drawing together with the application and key dimensions. If the designation is incomplete, we would rather confirm the missing information before quoting than send a “close enough” model that creates a problem during assembly. For distributors and OEM buyers, this also makes repeat orders easier because the approved specification is clear from the beginning.
