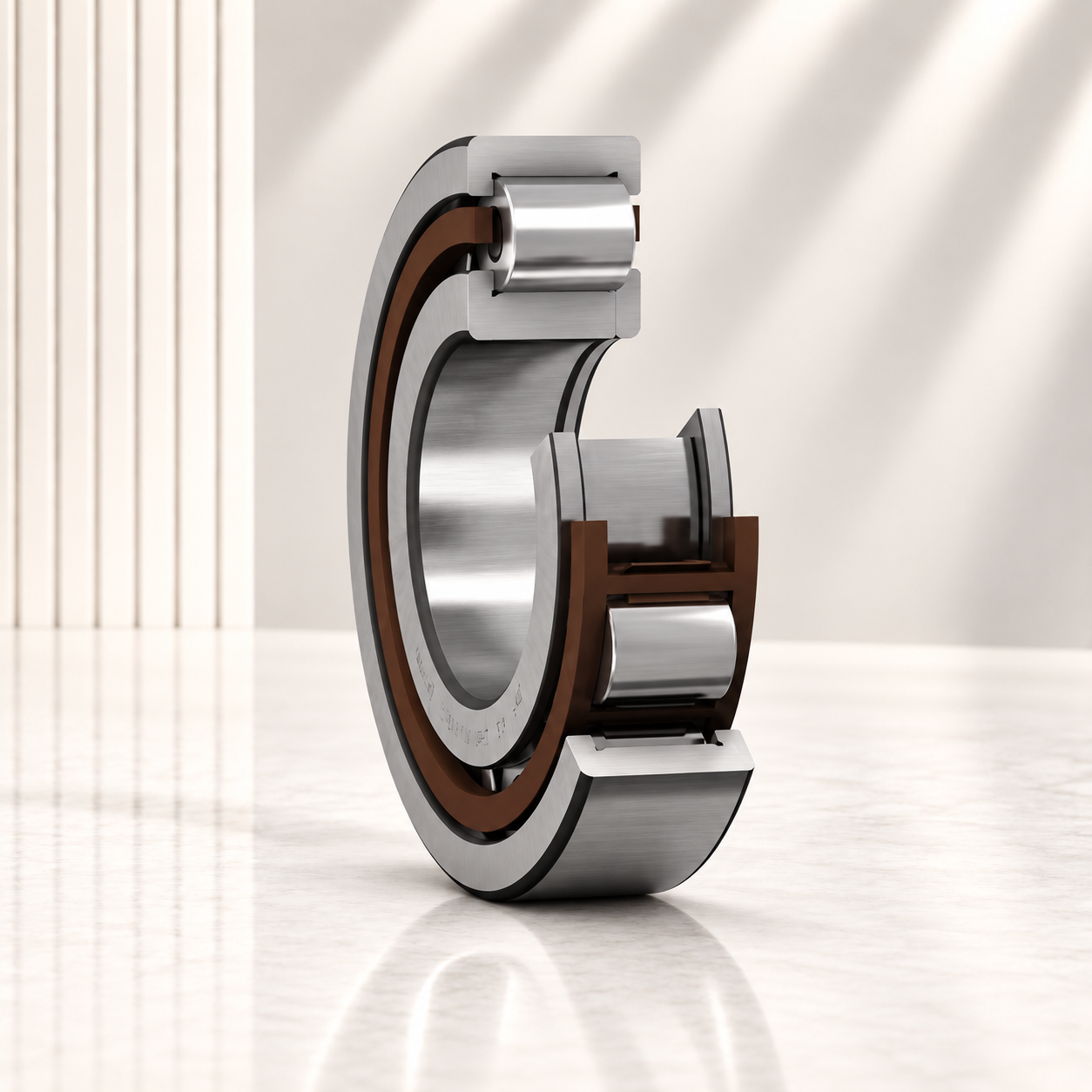

NUP 319 ECP NUP Single Row Cylindrical Roller Bearing

NUP 319 ECP single-row NUP cylindrical roller bearing with 95 mm bore, 200 mm OD, 45 mm width. High radial load carrying capability. Two-way axial location with NUP ring arrangement. Open construction suitable for controlled lubrication. Review shaft fit, loads, lubrication and working conditions before replacement.
Availability:
Quantity:
Inquire Add to Basket

  • NUP 319 ECP

  • BWK

  • BWK-NUP-319-ECP

DESCRIPTION

Product Overview

NUP 319 ECP is a single-row NUP cylindrical roller bearing. High radial load carrying capability. Two-way axial location with NUP ring arrangement. Open construction suitable for controlled lubrication. It is intended for industrial replacement and OEM applications where the specified envelope dimensions and design match the operating requirement.

Key Features

  • High radial load carrying capability

  • Two-way axial location with NUP ring arrangement

  • Open construction suitable for controlled lubrication

NUP-319-ECP

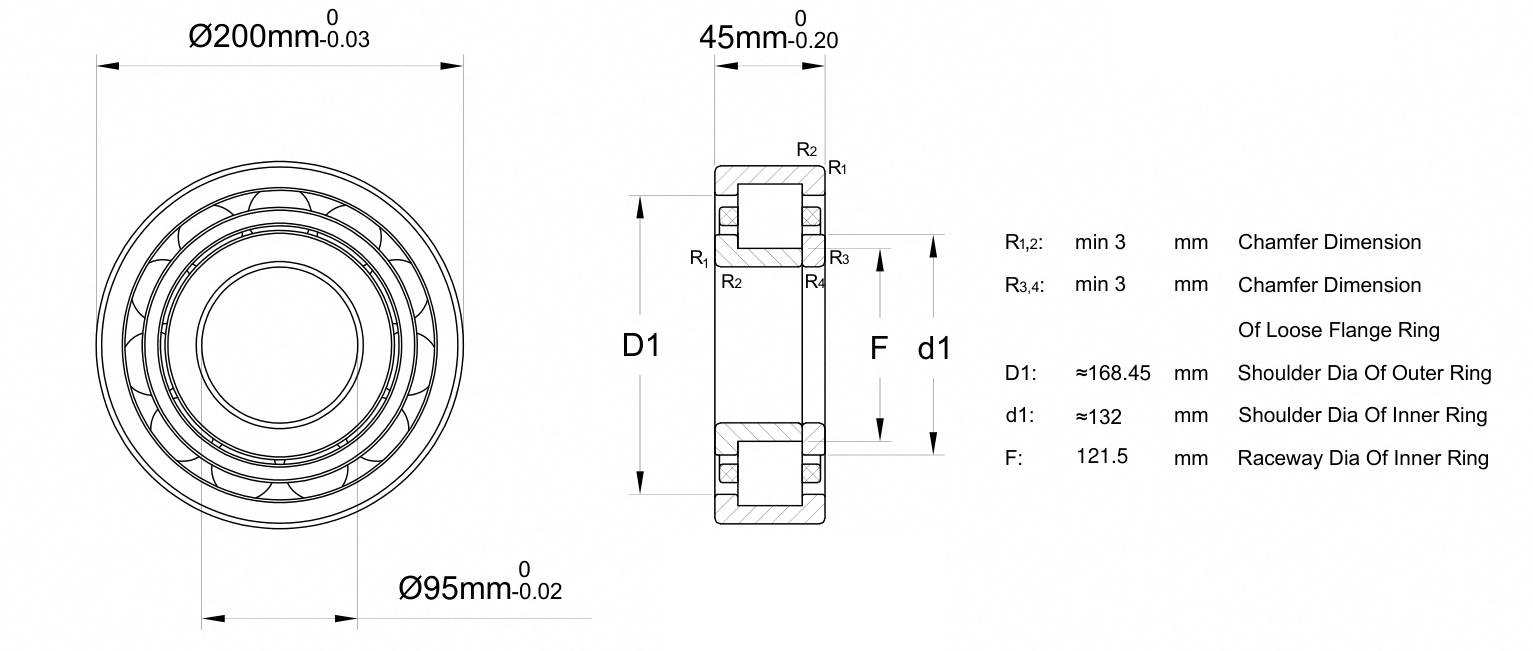

Technical Specifications

Model NUP 319 ECP
Product Type NUP Single Row Cylindrical Roller Bearing
Bore Diameter 95 mm
Outside Diameter 200 mm
Width 45 mm
Design Single row; NUP locating arrangement
Seal Type Open
Ring / Rolling Element Material Chrome steel
Cage PA66; roller centered
Lubrication Grease or oil

Typical Applications

  • Gearboxes and power transmission assemblies

  • Industrial shafts requiring axial location

  • Conveyors and production equipment

Selection Guidance

Verify operating clearance, axial demand, cage suitability and grease or oil supply.
