NUP 2309 ECP NUP Single Row Cylindrical Roller Bearing

NUP 2309 ECP single-row NUP cylindrical roller bearing with 45 mm bore, 100 mm OD, 36 mm width. NUP configuration uses locating flanges and a loose flange ring to position the shaft axially in both directions. The cylindrical rollers provide high radial load capability in a relatively compact cross section. Review shaft fit, loads and working conditions before replacement.

Availability:

Quantity:



Inquire Add to Basket

Model:
NUP 2309 ECP
Brand:
BWK
Code:
BWK-NUP-2309-ECP

DESCRIPTION

Product Overview

NUP 2309 ECP is a nup single row cylindrical roller bearing. NUP configuration uses locating flanges and a loose flange ring to position the shaft axially in both directions. The cylindrical rollers provide high radial load capability in a relatively compact cross section.

Key Features

High radial load carrying capability
Two-way axial location with NUP ring arrangement
Open construction suitable for controlled lubrication

nup2309ecp

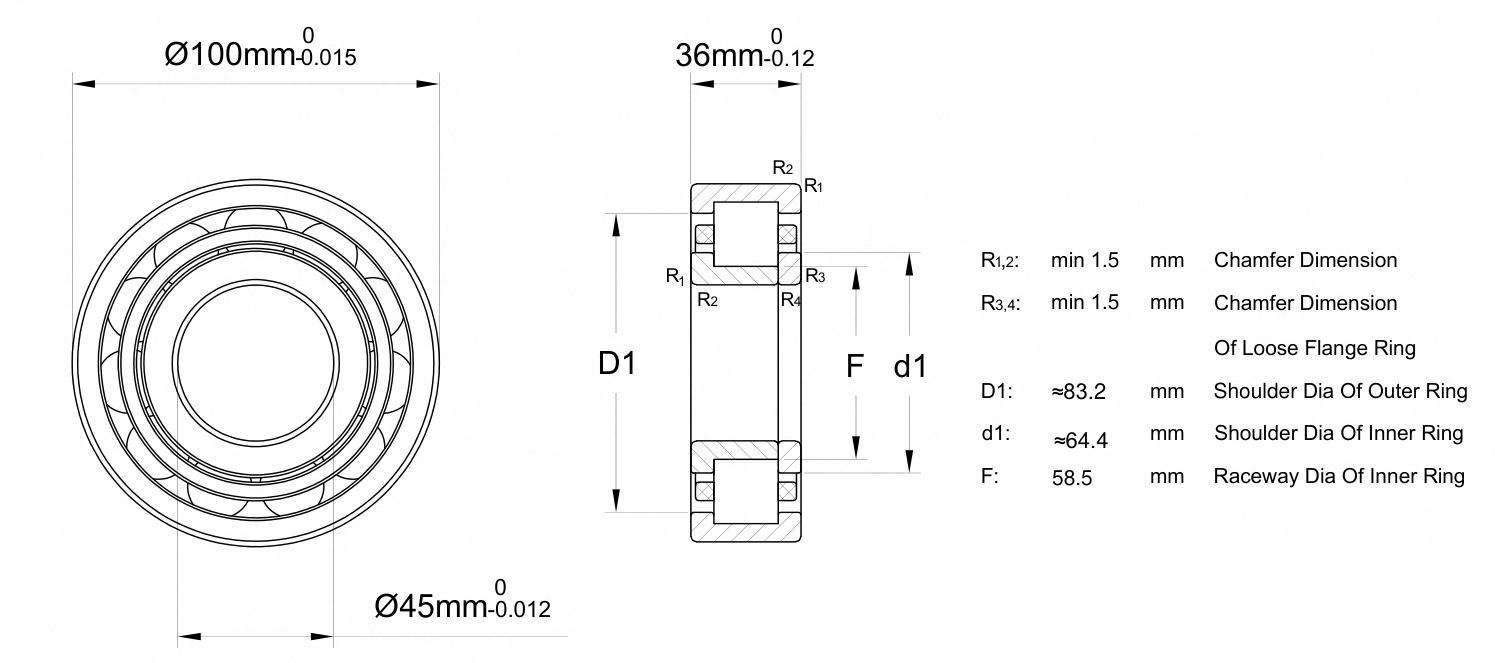

Technical Specifications

Model	NUP 2309 ECP
Product Type	NUP Single Row Cylindrical Roller Bearing
Bore Diameter	45 mm
Outside Diameter	100 mm
Width	36 mm
Design	Single row; NUP locating arrangement
Seal Type	Open
Ring / Roller Material	Chrome steel
Cage	PA66; roller centered
Lubrication	Grease or oil

Typical Applications

Gearboxes and power transmission assemblies
Industrial shafts requiring axial location
Conveyors and production equipment

Selection Guidance

Match shaft and housing fits to the 23-series envelope. Verify operating clearance, axial demand, cage suitability and grease or oil supply.
