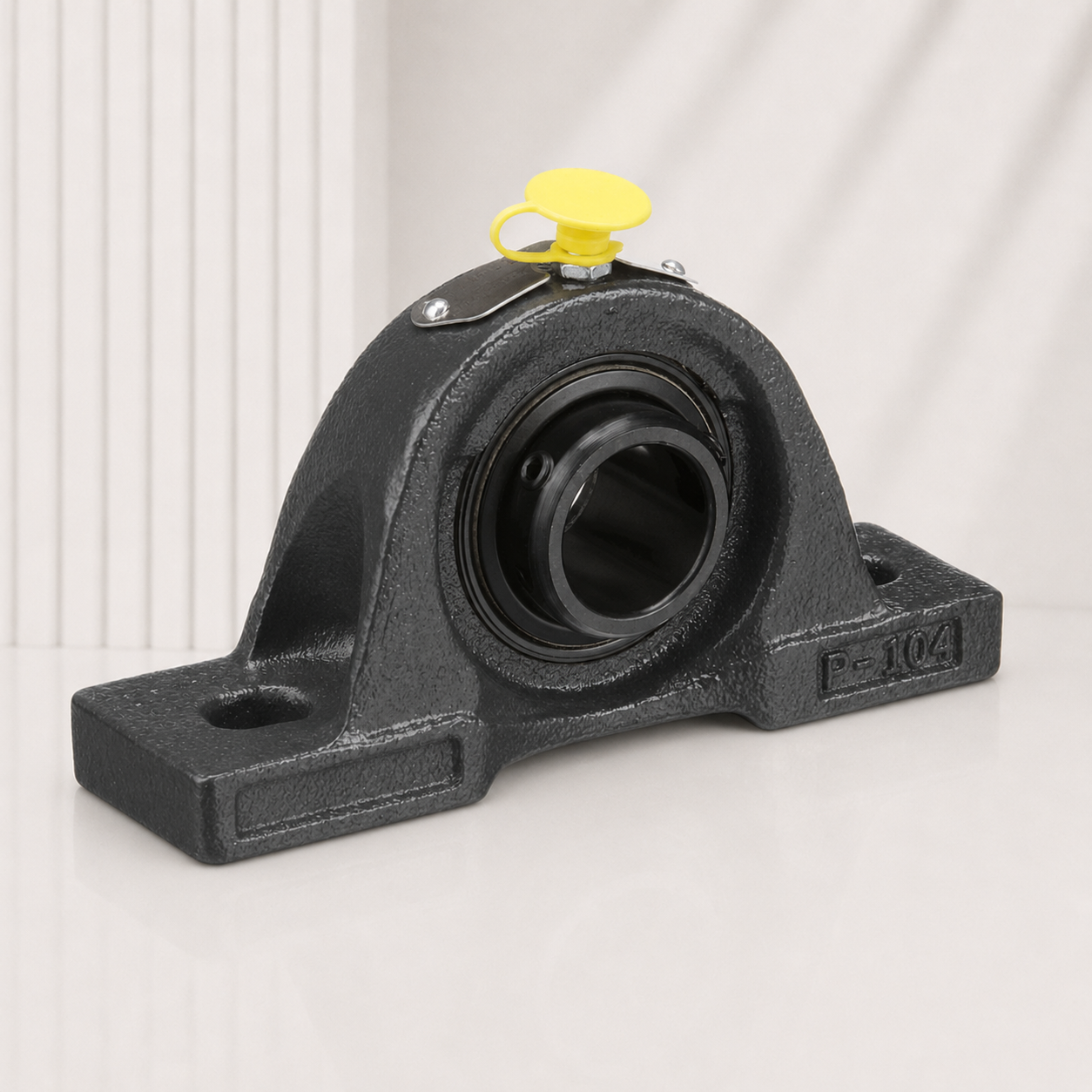

NP-16 Two-Bolt Pillow Block Ball Bearing

NP-16 mounted ball bearing unit with a 1 in bore, cast-iron two-bolt pillow block housing and setscrew locking for reliable industrial shaft support.
Availability:
Quantity:
Inquire Add to Basket

  • NP-16

  • BWK

  • BWK-NP-16

DESCRIPTION

Product Overview

NP-16 mounted ball bearing unit with a 1 in bore, cast-iron two-bolt pillow block housing and setscrew locking for reliable industrial shaft support.


Technical Data

Reference modelNP-16
Bore diameter1 in
Housing styleTwo-bolt pillow block
Housing materialCast iron
Insert bearing material52100 bearing steel
Locking methodSetscrew lock
Mounting arrangement2
Reference part number700180

Key Features

  • Durable cast-iron mounted housing

  • 52100 bearing-steel insert

  • Secure setscrew shaft locking

  • Black-oxided inner ring

  • Suitable for common industrial mounting arrangements

Applications

  • Conveyor systems

  • Material-handling equipment

  • Packaging machinery

  • Fans and blowers

  • General industrial equipment

Selection Notes

Confirm bore size, shaft fit, mounting geometry, load, speed, temperature and lubrication requirements before ordering. Verify final dimensions against the application drawing.
