MUCHPL206-20W Plastic Hanger Bearing Unit

MUCHPL206-20W plastic hanger mounted bearing unit with 31.75 mm bore. A corrosion-conscious mounted unit combining a stainless-steel insert and plastic hanger housing. The wide inner ring insert is secured to the shaft with set screws and uses double-sided seals. Review shaft fit, loads and working conditions before replacement.

Availability:

Quantity:



Inquire Add to Basket

Model:
MUCHPL206-20W
Brand:
BWK
Code:
BWK-MUCHPL206-20W

DESCRIPTION

Product Overview

MUCHPL206-20W is a plastic hanger bearing unit. A corrosion-conscious mounted unit combining a stainless-steel insert and plastic hanger housing. The wide inner ring insert is secured to the shaft with set screws and uses double-sided seals.

Key Features

Plastic hanger housing with stainless-steel bearing insert
Set-screw locking for shaft retention
Sealed insert to reduce ingress of dirt and moisture

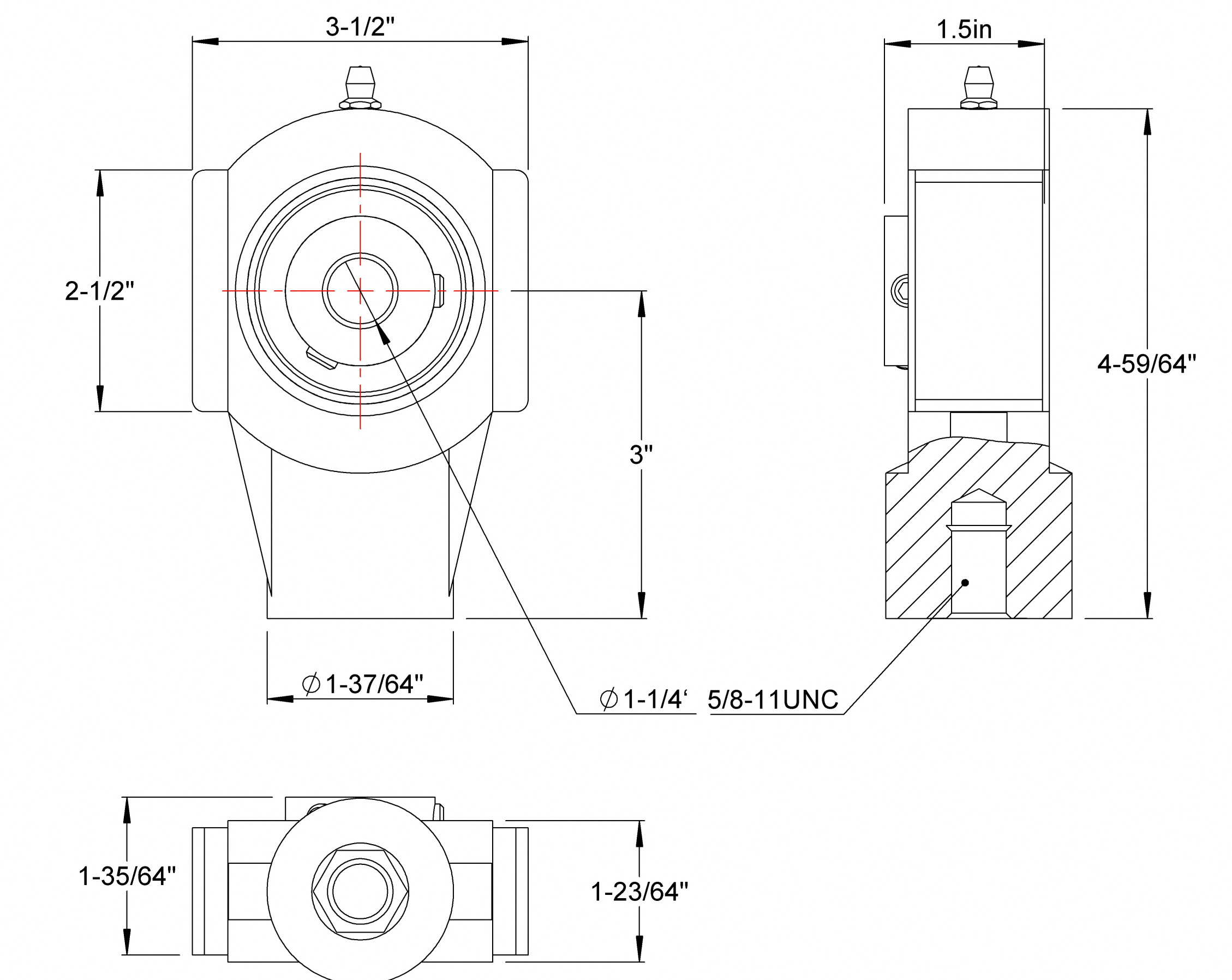

muchpl206-20w

Technical Specifications

Model	MUCHPL206-20W
Product Type	Plastic Hanger Bearing Unit
Bore Diameter	31.75 mm
Insert	Stainless steel; wide inner ring
Housing	Plastic hanger
Seal Type	Double sealed
Shaft Locking	Set screws
Housing Color	White
Lubrication	Relubrication required

Typical Applications

Conveyors and packaging lines
Food-processing and washdown-adjacent equipment where appropriate
Material handling and suspended shafts

Selection Guidance

Check shaft size, hanger housing envelope, attachment thread, permitted temperature and lubrication schedule. Confirm suitability for cleaning chemicals.

MUCHPL206-20W plastic hanger mounted bearing unit 31.75 mm bore Industrial Bearing replacement bearing BWK
