Insert Bearings with Housings

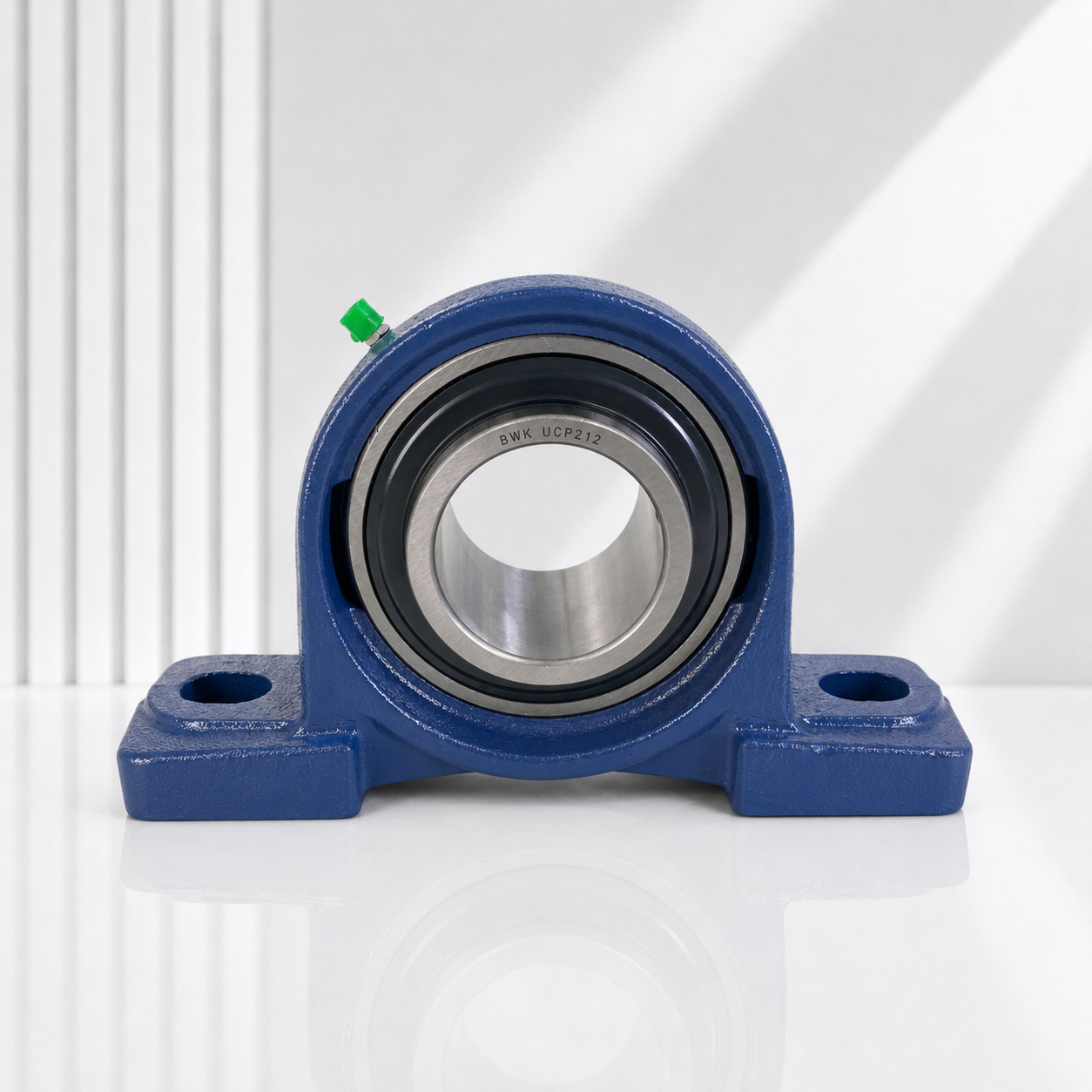

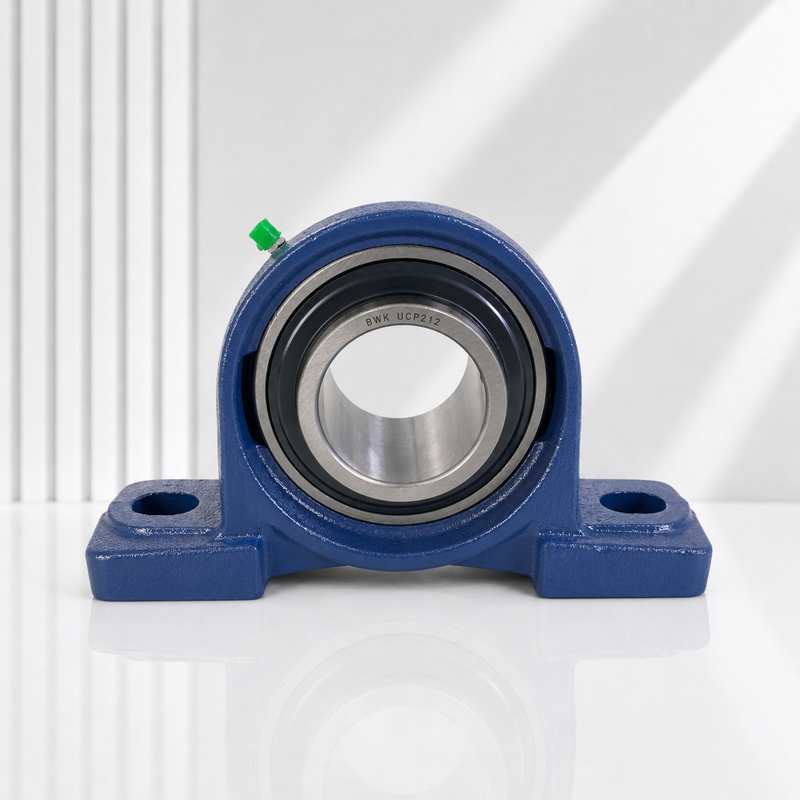

BWK UCP212 combines a UC212 insert bearing with a durable two-bolt cast-iron pillow block housing for convenient mounting, relubrication and reliable industrial operation.
Availability:
Quantity:
Inquire Add to Basket

Product Overview

Insert bearings with housings combine a self-aligning insert bearing and a robust cast-iron housing to create a ready-to-mount shaft support unit.

BWK supplies pillow block, flanged and take-up configurations for conveyors, agricultural machines, fans and general industrial equipment. Relubrication and shaft-locking options support dependable field maintenance.

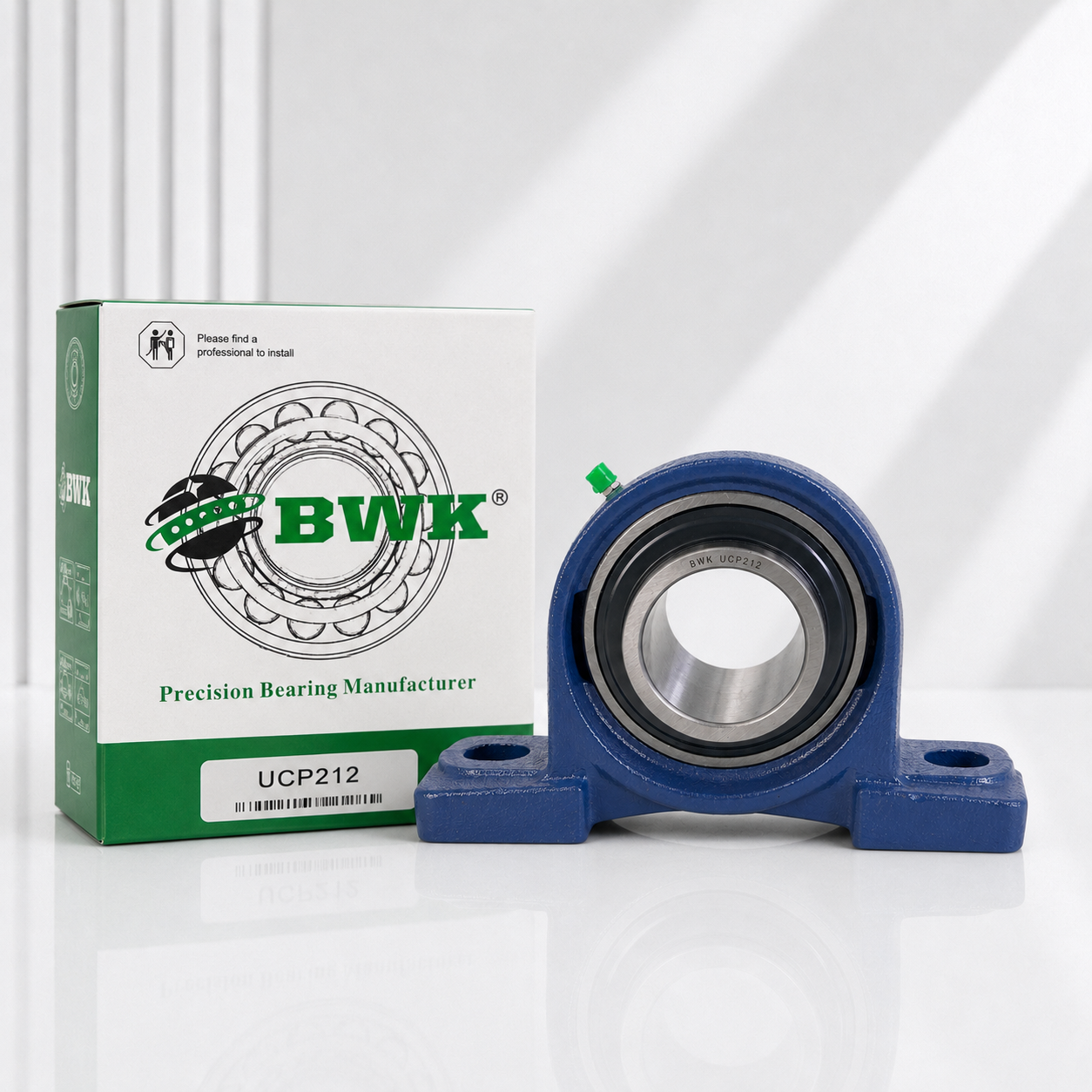

ChatGPT Image 2026年7月27日 20_30_33 (4)

Key Advantages


1. Ready-to-Mount Unit
The bearing and housing are matched as one assembly for efficient installation.

2. Self-Aligning Seating
The spherical outer surface of the insert helps compensate for moderate mounting misalignment.

3. Secure Shaft Locking
Set-screw and eccentric-locking options are available for different operating requirements.

4. Maintainable Industrial Design
Grease fittings and replaceable inserts support practical inspection and relubrication.



Available Series


Series Housing Type Main Feature
UCP Two-bolt pillow block General shaft support
UCF Four-bolt square flange Rigid wall mounting
UCFL Two-bolt oval flange Compact flange mounting
UCT Take-up unit Belt and chain tensioning


Available Models


Unit Model Bore Diameter Insert Bearing Housing Locking Method
UCP208 40 mm UC208 P208 Set Screw
UCP209 45 mm UC209 P209 Set Screw
UCP210 50 mm UC210 P210 Set Screw
UCP211 55 mm UC211 P211 Set Screw
UCP212 60 mm UC212 P212 Set Screw
UCP213 65 mm UC213 P213 Set Screw
UCP214 70 mm UC214 P214 Set Screw
UCP215 75 mm UC215 P215 Set Screw


Available Options


  • Cast-iron or pressed-steel housing

  • Set-screw or eccentric locking options subject to series

  • Metric and inch bore sizes

  • Standard or high-temperature grease subject to application


Applications


  • Conveyor and material handling equipment

  • Agricultural machinery

  • Fans, blowers and HVAC equipment

  • Food and packaging machinery

  • Textile, woodworking and general industrial equipment


Packaging & Delivery


  • Protective Packaging
    Each mounted unit is protected against moisture, impact and surface damage.

  • BWK Branded Packaging
    Correct model labels, individual BWK boxes and reinforced export cartons are available.

  • Selection Support
    Provide shaft diameter, mounting configuration, load, speed and working environment for model confirmation.
