Common Rolling Mill Bearing Failures and How to Prevent Them

Rolling mill bearings operate under heavy radial loads, repeated impact, heat, water and metal scale. Even when the correct bearing is installed, its service life can be shortened quickly if lubrication, mounting or surrounding components are not properly controlled.

When a bearing fails earlier than expected, replacing it with the same model may restore production temporarily, but it does not remove the cause. A better approach is to inspect the bearing, roll neck, housing, seals and lubrication system together.

Why Rolling Mill Bearings Fail Prematurely

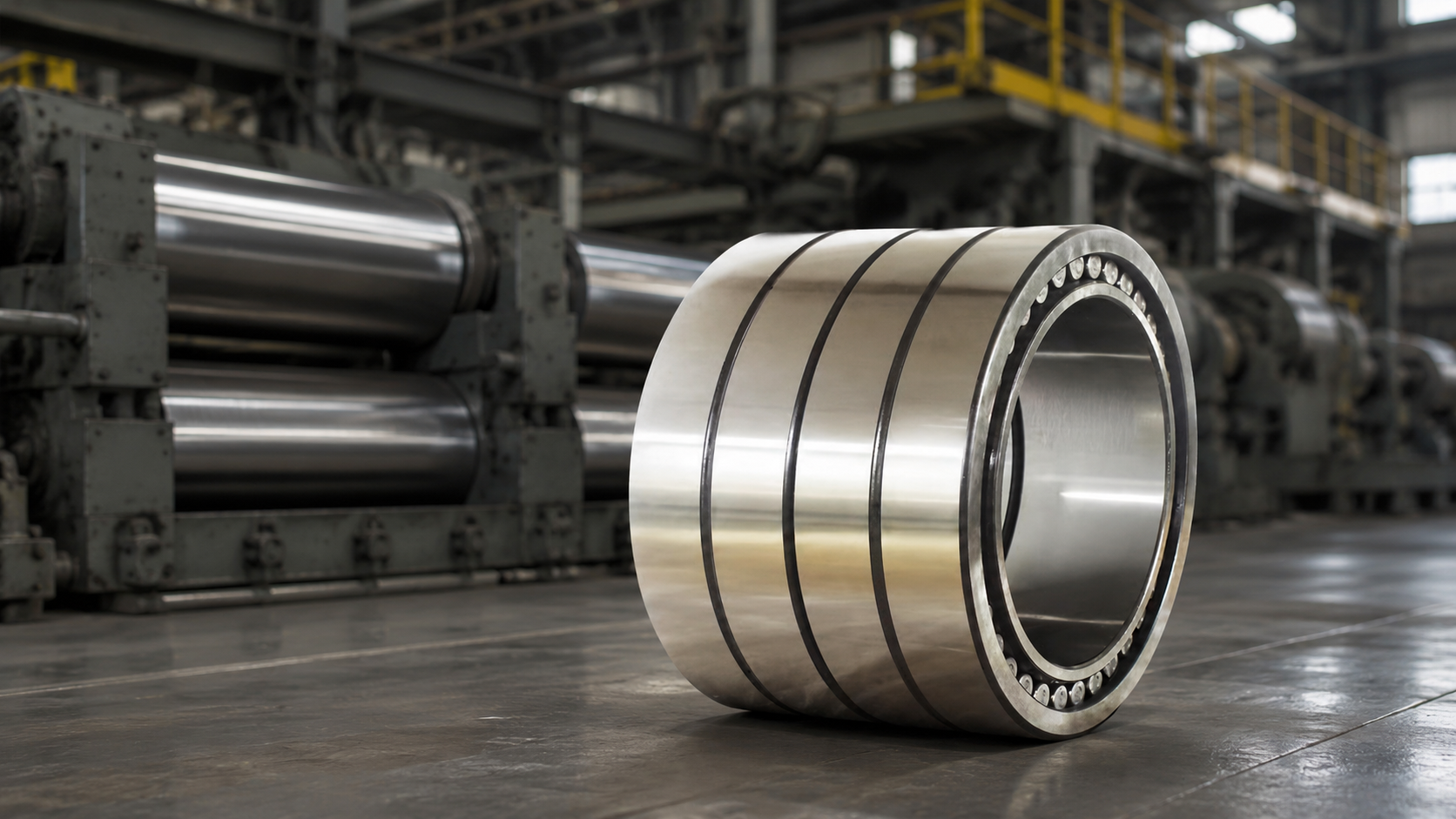

Four-row cylindrical roller bearings are commonly used on work rolls, intermediate rolls and backup rolls because they combine high radial load capacity with a compact cross-section. However, their performance depends on correct load distribution across the roller rows and stable lubrication throughout operation.

Premature failure usually develops from several conditions acting at the same time. Contamination may damage the raceway, while poor lubrication increases heat and accelerates surface fatigue. Incorrect mounting or unsuitable clearance can make the damage progress even faster.

1. Water, Scale and Other Contamination

Rolling mills are exposed to cooling water, dust, metal scale and lubricant contamination. If these materials enter the bearing position, they may create indentations on the rollers and raceways. The damaged surfaces then generate vibration, noise and additional wear.

Contamination control should include regular inspection of seals, lubricant cleanliness and the condition of the housing. When a removed bearing shows rust, dark marks or small surface dents, the sealing and lubrication system should be checked before a replacement bearing is installed.

2. Insufficient or Unsuitable Lubrication

Lubrication creates a film between the rolling elements and raceways. If the lubricant quantity is too low, the viscosity is unsuitable or the supply path is blocked, direct metal contact may occur. Common signs include overheating, discoloration, smearing and rapid surface wear.

Too much lubricant can also increase churning and operating temperature. The correct method depends on bearing size, speed, mill type and working cycle. Oil, oil-air and grease systems therefore require different inspection intervals and supply settings.

3. Incorrect Internal Clearance

Bearing clearance changes after mounting and again when the equipment reaches operating temperature. If the effective clearance becomes too small, friction and heat increase. If it is too large, the rollers may not share the load evenly, resulting in vibration and localized stress.

The required clearance should be confirmed according to the original mill design, fits, operating temperature and load. It should not be selected only by comparing the external dimensions of two bearings.

4. Mounting Damage and Ring Misalignment

Large rolling mill bearings require controlled mounting procedures. Impact on the wrong ring, uneven pressing force, contaminated mounting surfaces or misalignment between the roll neck and housing can damage the bearing before the mill returns to production.

Before installation, check the mating surfaces, chamfers, lubrication holes and ring orientation. Mounting force should be applied to the ring being fitted, and the separable components should remain clean throughout the process.

5. Uneven Load Distribution

A four-row bearing is designed to distribute heavy radial load across multiple roller rows. Wear or dimensional errors in the roll neck, chock or housing may shift the load toward one side. The result can be edge loading, localized raceway fatigue or different wear patterns between rows.

If damage repeatedly appears in the same location, inspect the surrounding components instead of treating the bearing as an isolated part. Shaft accuracy, housing deformation and roll alignment can all affect load distribution.

6. Incorrect Bearing Selection

Bearings with similar dimensions may have different internal designs, precision grades, clearances and load capacities. Substituting a model without checking these details may lead to unstable operation even if the bearing can be physically installed.

For a replacement, provide the complete bearing number, d × D × B dimensions, roll position and technical drawing when available. Operating speed, load, lubrication and working temperature also help confirm whether the original specification remains suitable.

Warning Signs That Should Not Be Ignored

• Operating temperature rises beyond the normal range

• Vibration or noise increases gradually

• Lubricant contains metal particles, water or dark residue

• Seals show wear, leakage or displacement

• Roller rows show uneven contact or discoloration

• The same bearing position fails repeatedly

Trend changes are often more useful than a single reading. Recording temperature, vibration and lubricant condition over time can help maintenance teams identify deterioration before an unplanned shutdown occurs.

Practical Maintenance Checks

• Keep the lubricant supply clean and confirm that passages are unobstructed.

• Inspect seals and surrounding covers for water or scale entry.

• Check the roll neck and housing dimensions during scheduled maintenance.

• Follow the specified mounting sequence and keep components clean.

• Record the position and appearance of damage on removed bearings.

• Compare repeated failures to identify equipment-related causes.

Confirming a Replacement Rolling Mill Bearing

Before ordering, collect the bearing number, dimensions, clear photos, roll-neck or housing drawing, mill type, roll position, operating speed, lubrication method and required quantity. This information makes it easier to confirm FC, FCD, FCDP or other rolling mill bearing designs.

For selection details, read our guide to selecting four-row cylindrical roller bearings for rolling mills.
