CH104LW
BWK
BWK-CH104LW

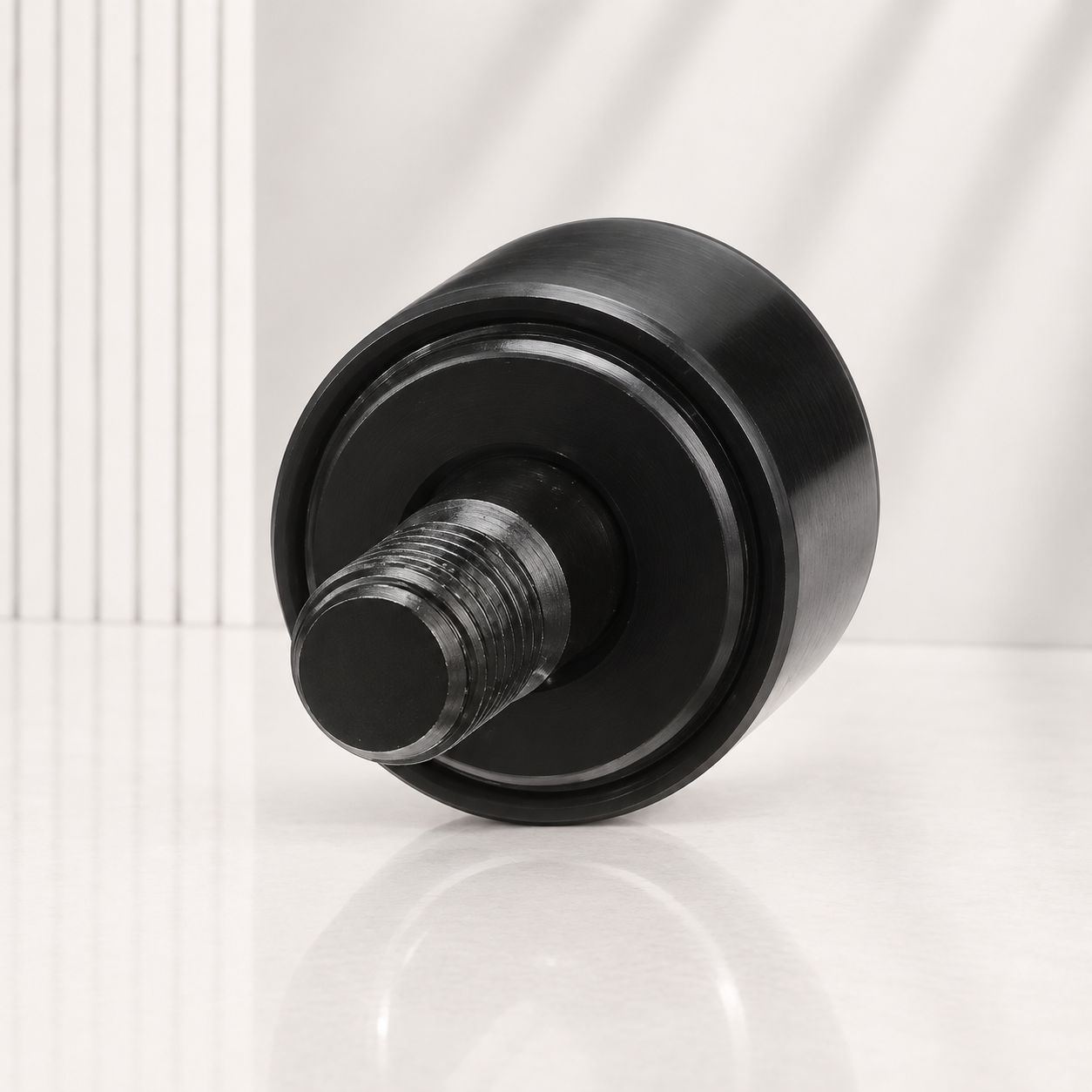

CH104LW stud cam follower for reliable operation in industrial machinery. The design combines compact installation with stable load support.

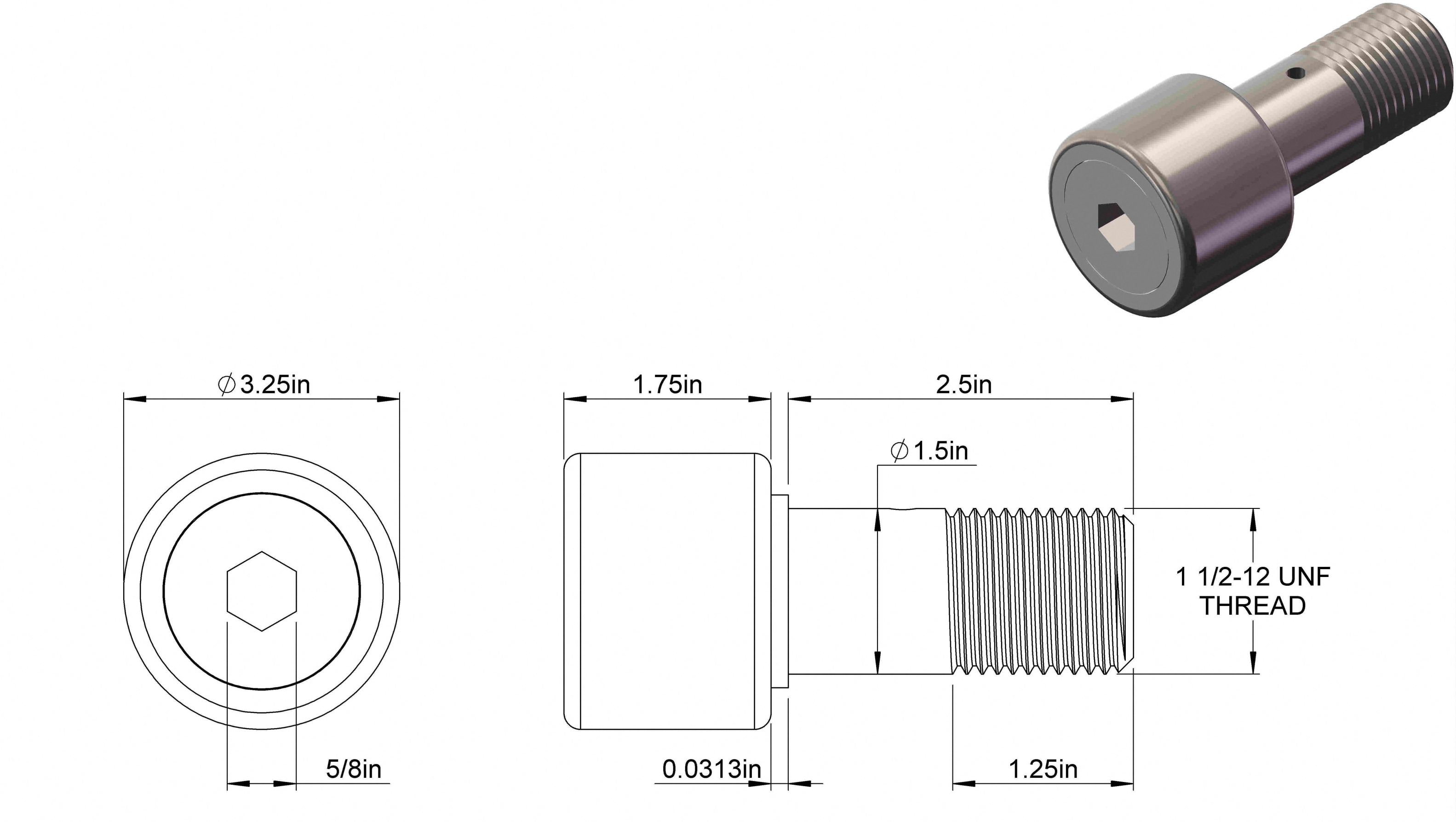

| Model | CH104LW |
|---|---|
| Bearing type | Stud Cam Follower |
| Roller diameter | 3.25 in |
| Roller width | 1.75 in |
| Stud diameter | 1.5 in |
| Stud length | 2.5 in |
| Mounting method | Hex hole |
| Seal type | Sealed |
| Roller shape | Crowned |
| Internal construction | Full complement |
| Dynamic radial load | 14,400 lbf |
| Static radial load | 36,600 lbf |
Thick outer ring for track and cam applications
Full-complement rolling elements for high radial load capacity
Crowned roller profile
Sealed construction helps retain lubricant and exclude contamination
Cam mechanisms
Conveyor systems
Industrial automation
Material-handling equipment
Confirm dimensions, load, speed, lubrication, operating temperature and installation requirements before ordering.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
