BB60040
BWK
BWK-BB60040

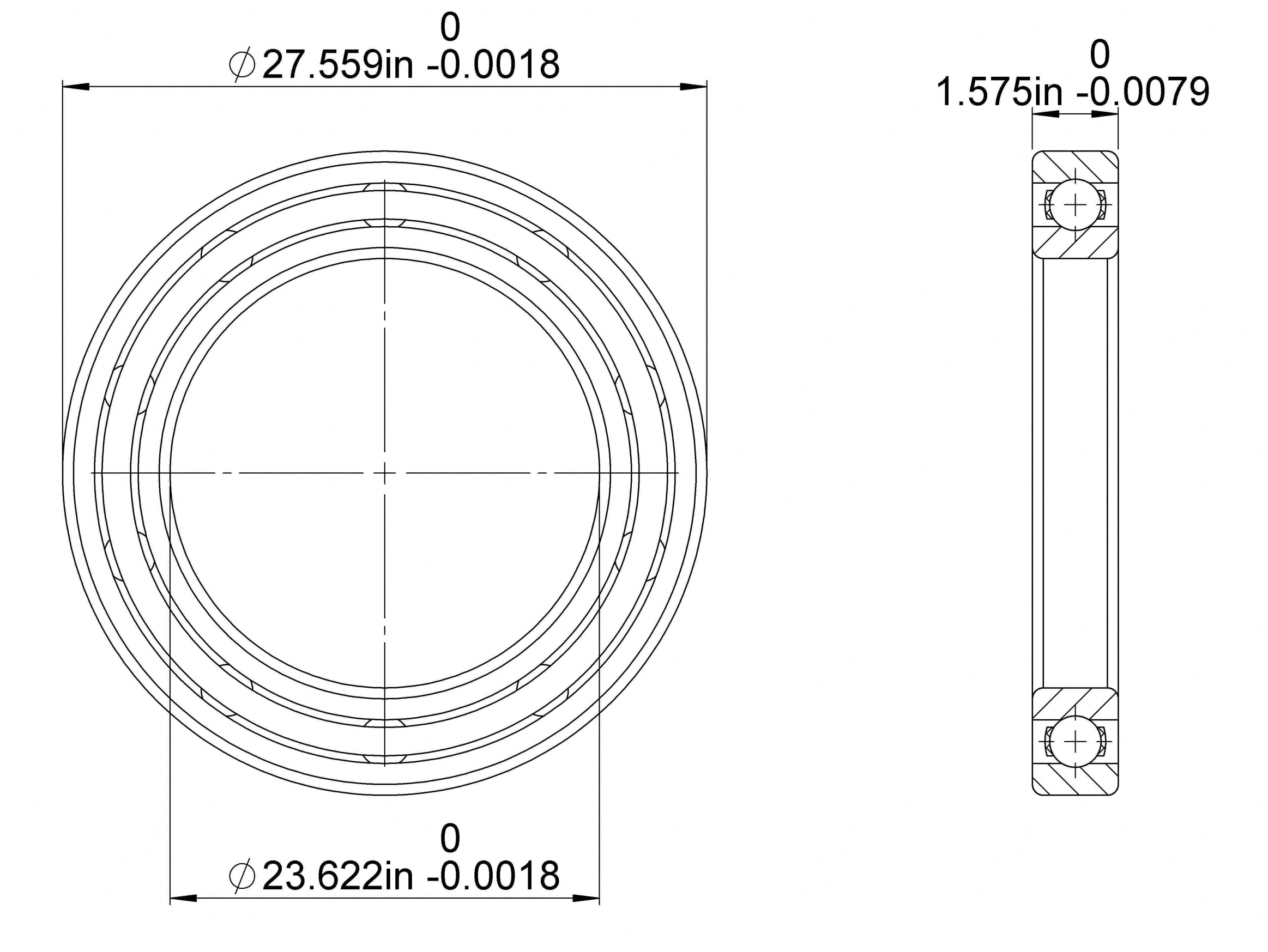

BB60040 is a four point contact ball slewing bearing with a 23.622 in bore, 27.559 in outside diameter and 1.575 in overall assembly height. A compact gearless cross-section supports combined radial, axial and moment loads. The machine must provide the drive arrangement separately.
| Model | BB60040 |
| Product Type | Four Point Contact Ball Slewing Bearing |
| Structure | Compact single-row ball ring without gear |
| Dimension Units | Inch (dimensions shown) |
| Series | BB Series |
| Gear | Without Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 23.622 in |
| Outside Diameter Of Outer Ring | 27.559 in |
| Height Of Overall Bearing Assembly | 1.575 in |
| For Load Direction | Four Point Contact |
| Seal Type | Open |
| Bore Dia Tolerance | -0.0018 in |
| Outer Dia Tolerance | -0.0018 in |
| Width Tolerance | -0.0079 in |
| Dynamic Radial Load | 34631 lbs |
| Dynamic Thrust | 59273 lbs |
| Radial Clearance | 0.0035 in |
| Radial and Axial Runout Inner | 0.0018 in |
| Radial and Axial Runout Outer | 0.0018 in |
| Moment Load Rating | 37565 ft-lbs |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Weight | 27.24 kg |
Rotary positioning systems, compact turntables and automation machinery.
Assess axial load, radial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm the bolt circles, hole sizes, material grade, seal configuration and lubrication requirements before ordering. Use flat, adequately stiff mounting surfaces and the specified bolt-tightening procedure.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
