BB50050
BWK
BWK-BB50050

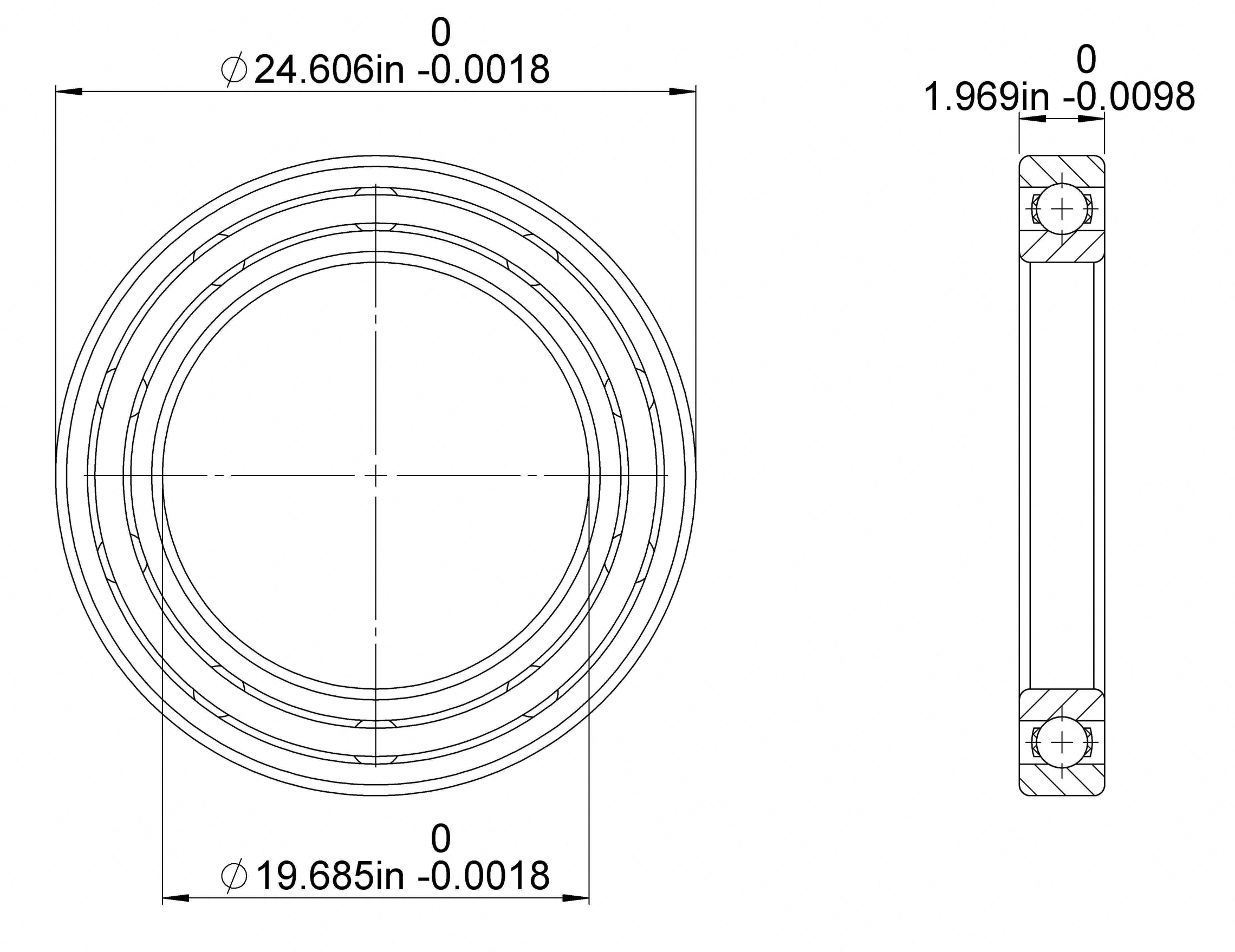

BB50050 is a four point contact ball slewing bearing with a 19.685 in bore, 24.606 in outside diameter and 1.969 in overall assembly height. A compact gearless cross-section supports combined radial, axial and moment loads. The machine must provide the drive arrangement separately.
| Model | BB50050 |
| Product Type | Four Point Contact Ball Slewing Bearing |
| Structure | Compact single-row ball ring without gear |
| Dimension Units | Inch (dimensions shown) |
| Series | BB Series |
| Gear | Without Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 19.685 in |
| Outside Diameter Of Outer Ring | 24.606 in |
| Height Of Overall Bearing Assembly | 1.969 in |
| For Load Direction | Four Point Contact |
| Seal Type | Open |
| Bore Dia Tolerance | -0.0018 in |
| Outer Dia Tolerance | -0.0018 in |
| Width Tolerance | -0.0098 in |
| Dynamic Radial Load | 32087 lbs |
| Dynamic Thrust | 53718 lbs |
| Radial Clearance | 0.0035 in |
| Radial and Axial Runout Inner | 0.0018 in |
| Radial and Axial Runout Outer | 0.0018 in |
| Moment Load Rating | 30120 ft-lbs |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Weight | 38.05 kg |
Rotary positioning systems, compact turntables and automation machinery.
Assess axial load, radial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm the bolt circles, hole sizes, material grade, seal configuration and lubrication requirements before ordering. Use flat, adequately stiff mounting surfaces and the specified bolt-tightening procedure.
