BB3510 Four-Point Contact Ball Slewing Bearing

BWK BB3510 four point contact bearing, 1.378 in bore x 2.362 in outside diameter x 0.394 in width.
Availability:
Quantity:
Inquire Add to Basket

  • BB3510

  • BWK

  • BWK-BB3510

DESCRIPTION

Product Overview

BB3510 is a precision bearing designed for stable rotational accuracy, compact installation and reliable load support. It is suitable for compact turntables, robotics, positioning mechanisms and light-duty rotating equipment.

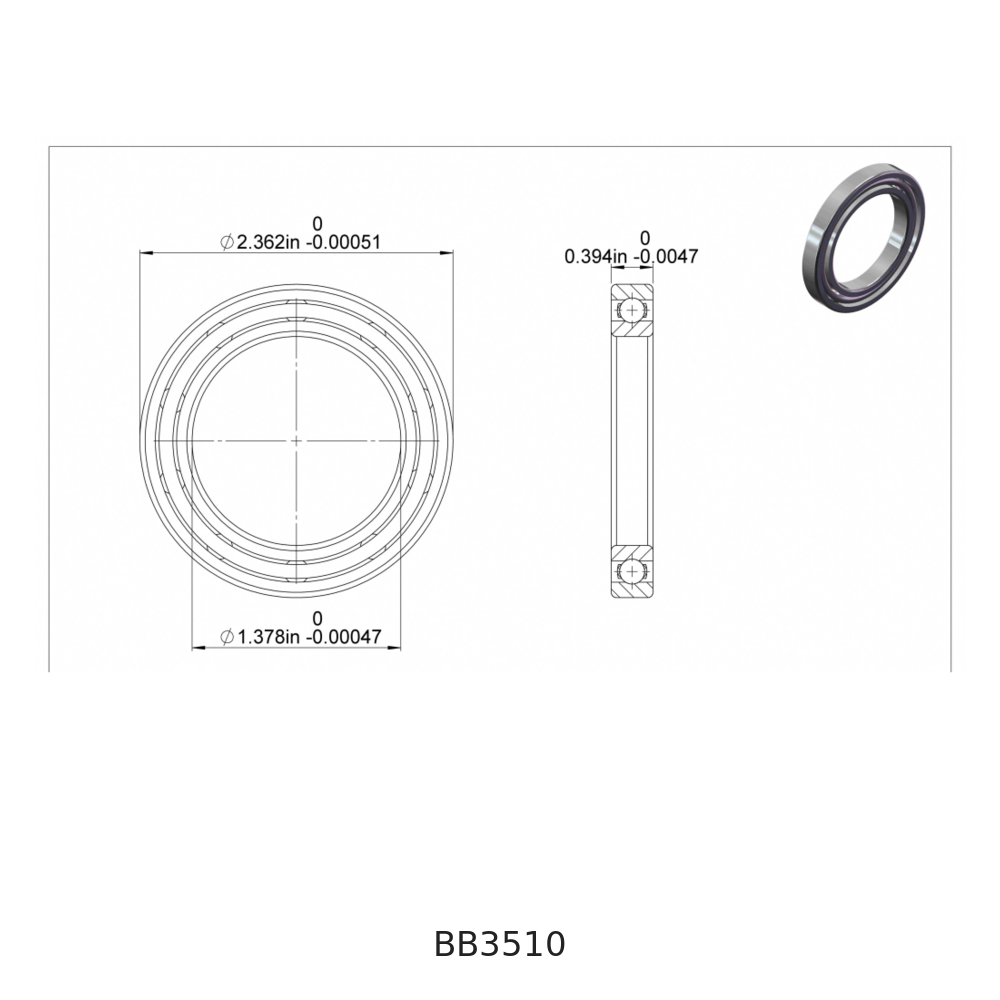

BB3510_drawing

Technical Data

Model BB3510
Bore diameter 1.378 in
Outside diameter 2.362 in
Width 0.394 in

Features

Dynamic radial load 1,131 lbf; dynamic thrust load 1,563 lbf; moment rating 90 ft-lb; radial clearance 0.001 in; approximate weight 0.11 kg.

For quotation and selection support, please provide the model, quantity, operating speed, load direction, accuracy requirement and working environment.
