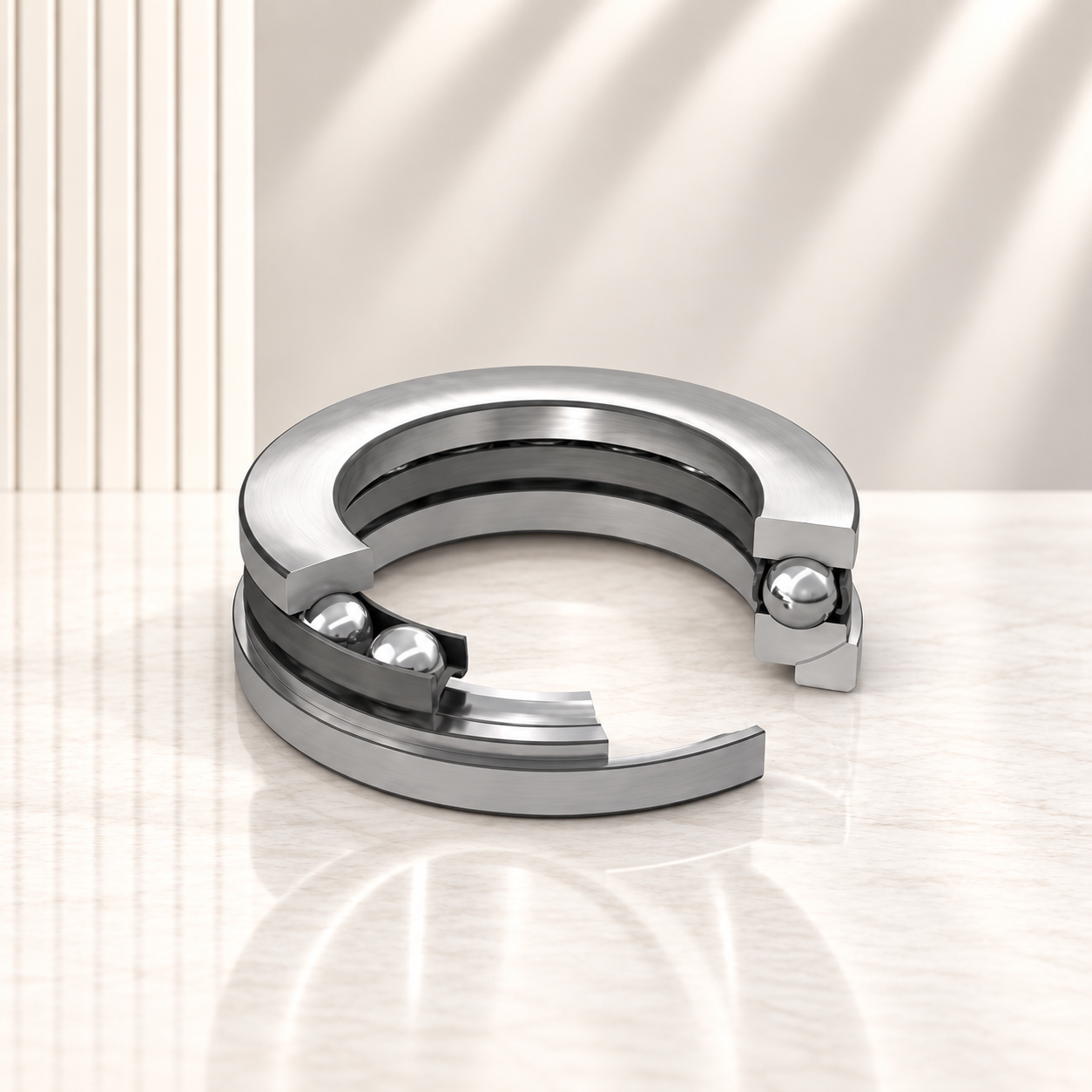

51110 Single Direction Thrust Ball Bearing

51110 single-direction thrust ball bearing with 50 mm bore, 70 mm OD, 14 mm width. Designed for axial loads in one direction. Separable components simplify mounting and inspection. Low-friction ball and raceway contact. Review shaft fit, loads, lubrication and working conditions before replacement.
Availability:
Quantity:
Inquire Add to Basket

  • 51110

  • BWK

  • BWK-51110

DESCRIPTION

Product Overview

51110 is a single-direction thrust ball bearing. Designed for axial loads in one direction. Separable components simplify mounting and inspection. Low-friction ball and raceway contact. It is intended for industrial replacement and OEM applications where the specified envelope dimensions and design match the operating requirement.

Key Features

  • Designed for axial loads in one direction

  • Separable components simplify mounting and inspection

  • Low-friction ball and raceway contact

51110

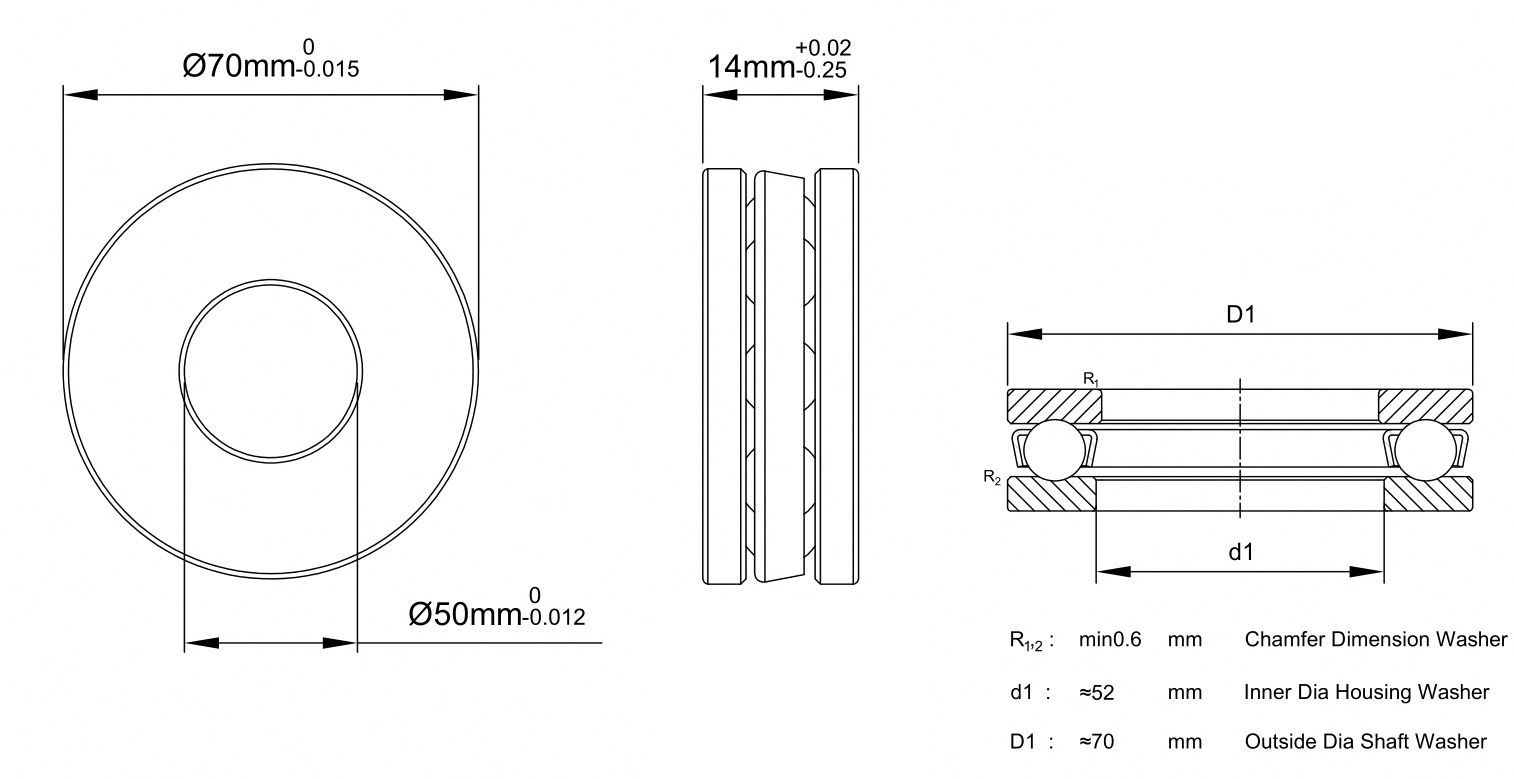

Technical Specifications

Model 51110
Product Type Single Direction Thrust Ball Bearing
Bore Diameter 50 mm
Outside Diameter 70 mm
Width 14 mm
Design Single direction; separable shaft washer, housing washer and ball-cage assembly
Seal Type Open
Ring / Rolling Element Material Chrome steel
Cage Pressed steel
Lubrication Grease or oil

Typical Applications

  • Machine tool spindles and lead screws

  • Vertical shafts and pumps

  • General industrial equipment

Selection Guidance

Use for axial loading only. Verify washer seating, minimum load, speed and lubrication before selection.
